Battery Cables - 1.5L EcoBoost (118kW/160PS) - I4: Removal
NOTE:
This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
- 2.
Disconnect the battery. REFER to: Battery Disconnect and Connect .

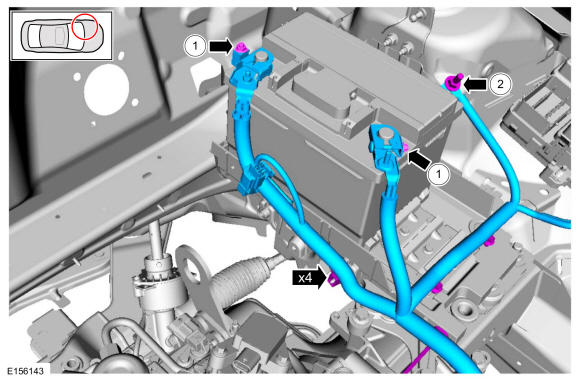

Vehicles without Auto-Start-Stop System
- 3.
- 1.
Torque: 44 lb.in (5 Nm)
- 2.
Torque: 106 lb.in (12 Nm)
- 1.

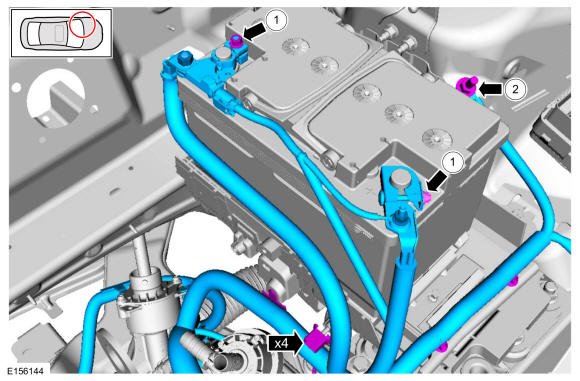

Vehicles with Auto-Start-Stop System
- 4.
- 1.
Torque: 44 lb.in (5 Nm)
- 2.
Torque: 106 lb.in (12 Nm)
- 1.
All vehicles
- 5.
- 6.
Torque: 150 lb.in (17 Nm)

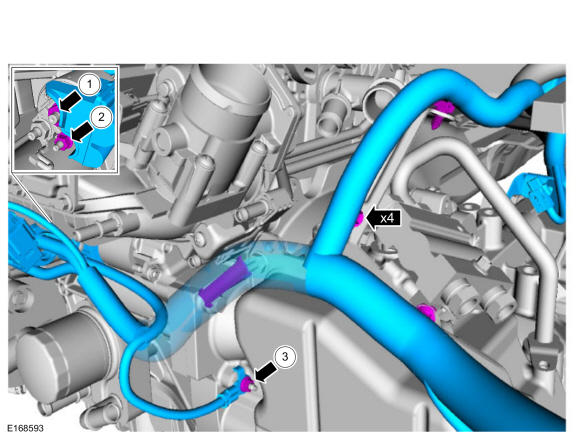

- 7.
- 1.
Torque: 106 lb.in (12 Nm)
- 2.
Torque: 53 lb.in (6 Nm)
- 3.
Torque: 89 lb.in (10 Nm)
- 1.
- 8.
- 1.
Torque: 89 lb.in (10 Nm)
- 2.
Torque: 133 lb.in (15 Nm)
- 1.
- 9.
- 1.
Vehicles with Auto-Start-Stop System
- 2.
Torque: 106 lb.in (12 Nm)
- 1.
