Rear Halfshaft: Removal
NOTE:
Never pick up or hold the halfshaft by only the inner or outer Constant Velocity (CV) joint. Damage to the CV joint will occur.
NOTE:
Never use a hammer to remove or install the halfshafts. Damage to the CV joint may occur.
NOTE:
Never use the halfshaft assembly as a lever to position other components. Damage to the halfshaft or CV joint may occur.
NOTE:
Do not allow the boots to contact sharp edges or hot exhaust components. Damage to the halfshaft boots will occur.
NOTE:
Do not drop assembled halfshafts. The impact may cut the boots from the inside without evidence of external damage.
- 1.
Remove the wheel knuckle. REFER to: Wheel Knuckle - FWD .
- 2.

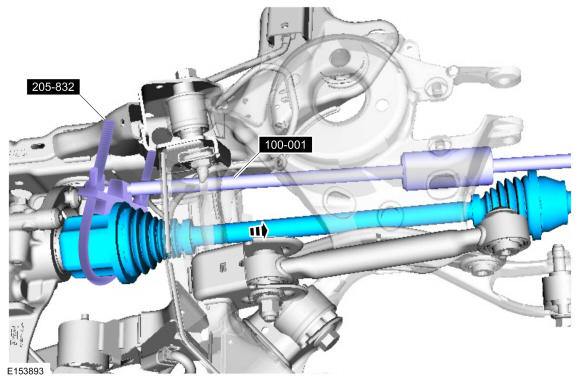

Using the special tools, remove the rear halfshaft.Use Special Service Tool: 205-83 Remover, Halfshaft, 100-001 (T50T-100-A) Slide Hammer.
- 3.

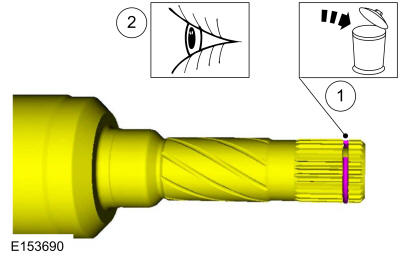

Inspect the inner CV joint.- 1.
Remove and discard the halfshaft retaining circlip.
- 2.
Inspect the halfshaft end for damage.
