Rear Disc Brake Shield: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the brake disc. Refer to: Brake Disc .
- 2.

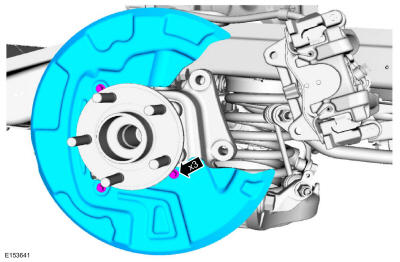

Remove the bolts and the brake disc shield.Torque
: 106 lb.in (12 Nm)
