Rear Brake Pads: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Service actions on vehicles equipped with electronic parking brakes may cause unexpected parking brake application, which could result in injury to hands or fingers. Put the electronic parking brake system into service mode prior to servicing or removing rear brake components. Failure to follow this instruction may result in serious personal injury.

Activate the EPB service mode. Refer to: Electronic Parking Brake (EPB) Service Mode Activation and Deactivation .

2.

Remove the wheel and tire. Refer to: WHEEL AND TIRE .

3.

Remove the brake caliper spring.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

NOTE: If the inboard brake pad is equipped with a center pin, align the center pin of the brake pad with the brake caliper piston pocket or damage to the brake pad or caliper piston may occur. If necessary, rotate the piston counter clockwise to align with the pin.

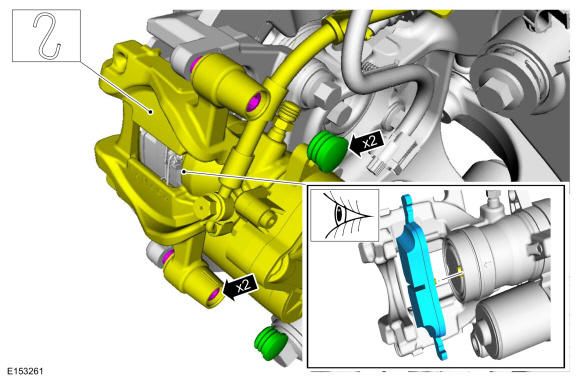

Remove the caps, the guide pins and position the brake caliper aside.

Torque

: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

5.

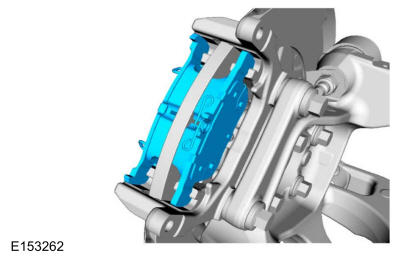

Remove the brake pads.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Use care when pushing the caliper piston into the caliper piston bores or damage to components may occur.

Compress the brake caliper piston until the piston bottoms out in the brake caliper bore.
- NOTE: Do not apply over 20 Nm (177 in-lb) force when rotating the brake caliper piston or internal damage to the brake caliper may occur.

  If the brake caliper piston bottoms out and the piston is still not fully compressed, rotate the piston clockwise while pushing inward using a brake caliper piston retractor until the piston is fully compressed.

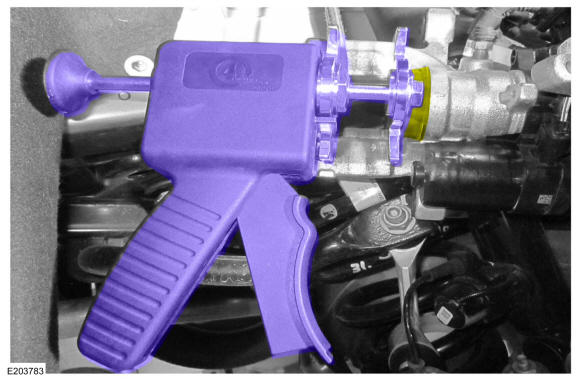

  Use the General Equipment: Brake Caliper Piston Retractor

Courtesy of FORD MOTOR COMPANY
