Rear Brake Caliper Anchor Plate: Removal
NOTE:
Steps in the removal procedure may contain installation details.
- 1.
Remove the brake pads. Refer to: Brake Pads .
- 2.

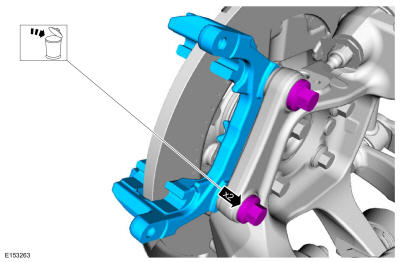

Remove the bolts and the brake caliper anchor plate. Discard the bolts.Torque
: 66 lb.ft (90 Nm)
