Front Brake Flexible Hose: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

Remove the wheel ant tire. Refer to: Wheel and Tire .

3.

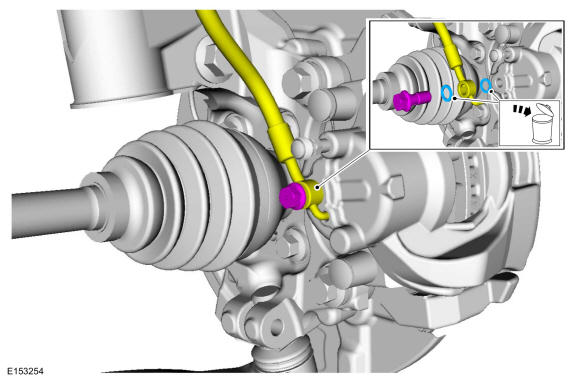

Remove the flow bolt and detach the front brake hose. Discard the washers.
Torque

: 18 lb.ft (25 Nm)

GFD66672

Courtesy of FORD MOTOR COMPANY

4.

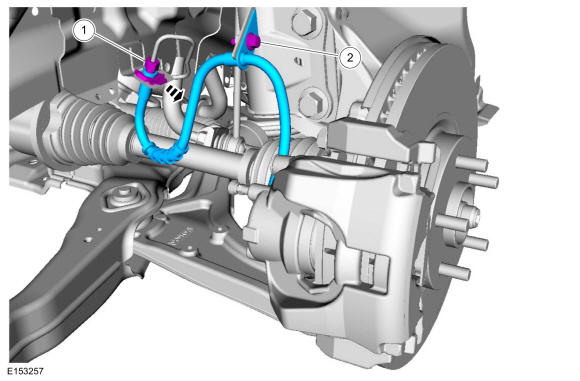

- 1.

  Disconnect the brake tube fitting.
  Torque

  : 159 lb.in (18 Nm)
- 2.

  Remove the brake flexible hose bracket bolt, the clip and the brake flexible hose.
  Torque

  : 159 lb.in (18 Nm)

GFD66684

Courtesy of FORD MOTOR COMPANY
