Rear Door Glass Top Run: Removal

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the rear door window glass. REFER to: Rear Door Window Glass .

2.

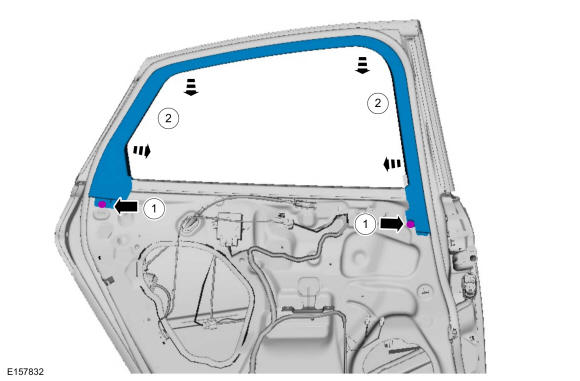

Remove the rear door upper trim.
1. 1.

  Remove the retainers from the rear door upper trim.
1. 2.

  Remove the rear door upper trim.

GFD69683

Courtesy of FORD MOTOR COMPANY

3.

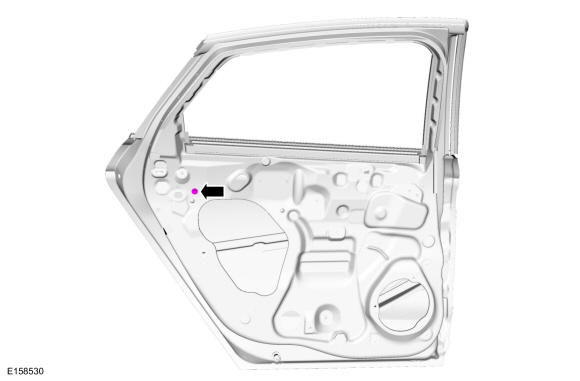

Remove the bolt.
Torque

: 89 lb.in (10 Nm)

GFD70389

Courtesy of FORD MOTOR COMPANY

4.

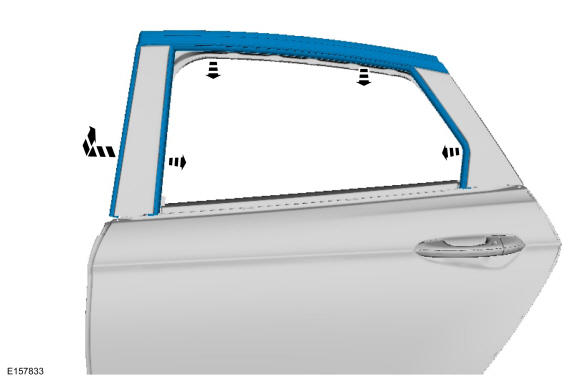

Remove the rear door glass top run.

GFD70390

Courtesy of FORD MOTOR COMPANY
