Roof Opening Panel Blind: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
Remove the air deflector. REFER to: Air Deflector .
- 3.

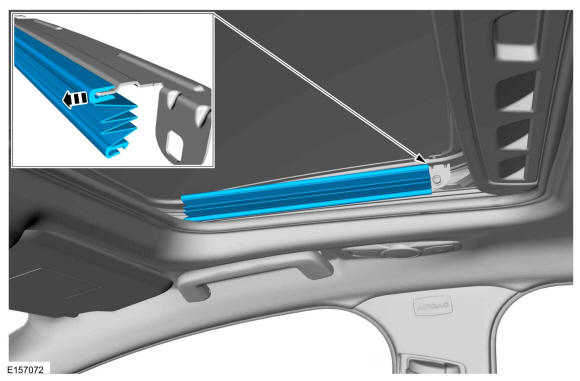

On both sides. Detach and remove the top portion of the roof opening panel blind.
- 4.

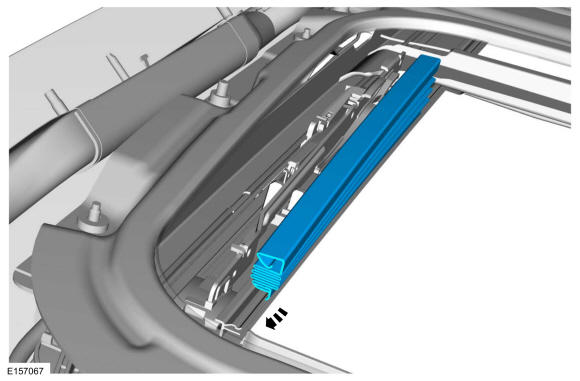

On both sides. Slide the roof opening panel blind forward and up out of the guide track.
