Air Deflector: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.NOTE: Some parts removed for clarity.

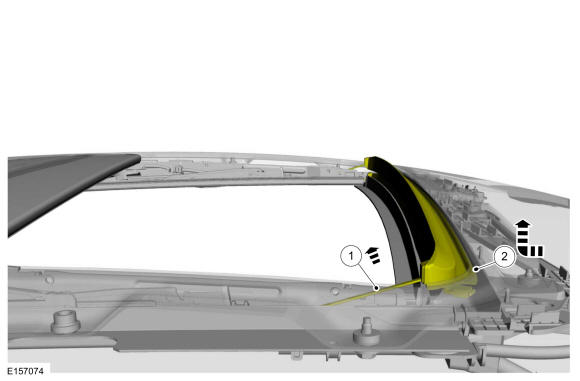

On both sides. Disconnect the air deflector body from the roof opening panel frame.
- 1.
Lift up the air deflector arm.
- 2.
Slide the air deflector body rearward and up to disconnect the air deflector body.
- 1.
- 3.
Remove the air deflector assembly.- 1.
Tilt the air deflector assembly upward.
- 2.
Pull forward to remove air deflector assembly.
- 1.
