Rear Bumper: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
Remove the rear bumper cover. Refer to: Rear Bumper Cover .
- 3.

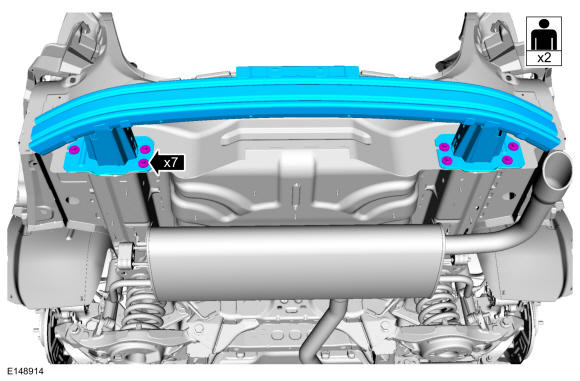

Remove the bolts and the rear bumper.Torque
: 22 lb.ft (30 Nm)
