Removal And Installation: Fender: Removal

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

Remove the fender splash shield. REFER to: Fender Splash Shield .

3.

Remove the rocker panel moulding. REFER to: Rocker Panel Moulding .

4.

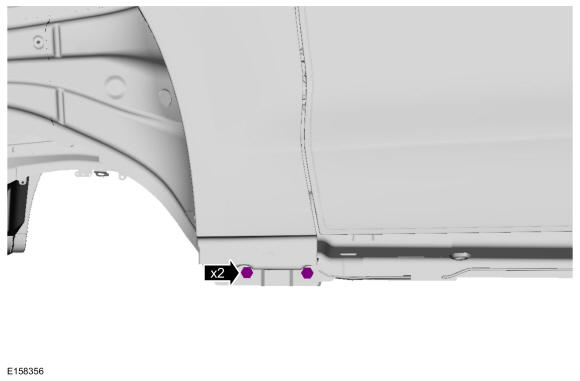

Remove the lower rear bolts.
Torque

: 80 lb.in (9 Nm)

GFD69389

Courtesy of FORD MOTOR COMPANY

5.

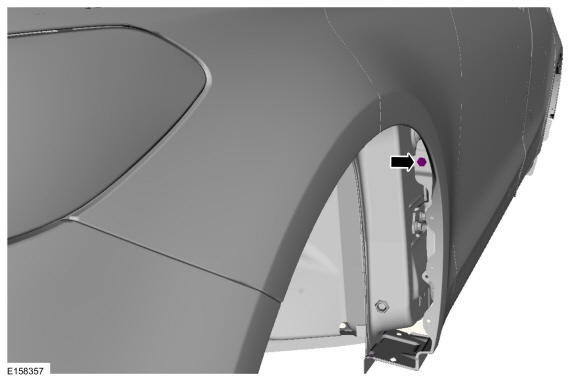

Remove the bolt.
Torque

: 80 lb.in (9 Nm)

GFD69390

Courtesy of FORD MOTOR COMPANY

6.

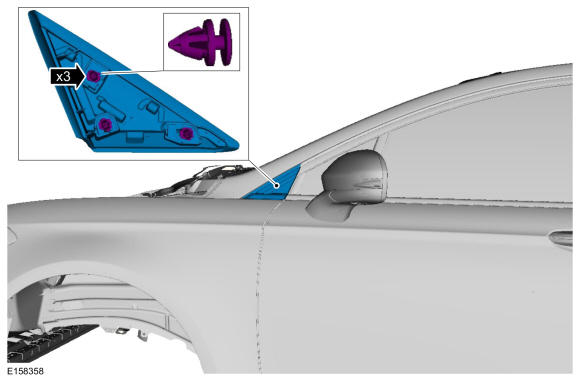

Remove the retainers and the door frame moulding.

GFD69391

Courtesy of FORD MOTOR COMPANY

7.

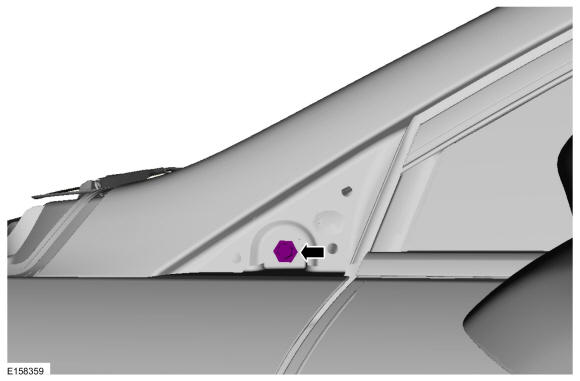

Remove the bolt.
Torque

: 80 lb.in (9 Nm)

GFD69392

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Bumper cover removed for clarity.
1. 1.

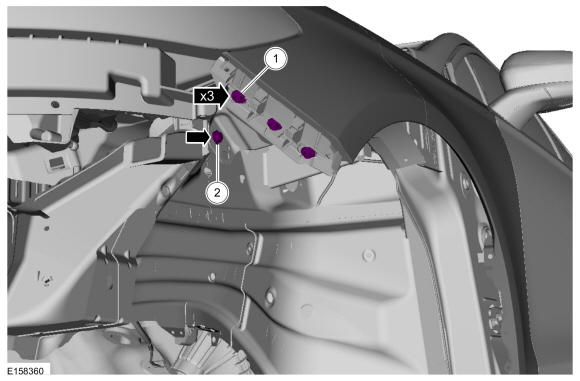

  Remove the fender-to-bumper cover bolts.
  Torque

  : 53 lb.in (6 Nm)
1. 2.

  Remove the front fender bracket bolt.
  Torque

  : 80 lb.in (9 Nm)

GFD69393

Courtesy of FORD MOTOR COMPANY

9.

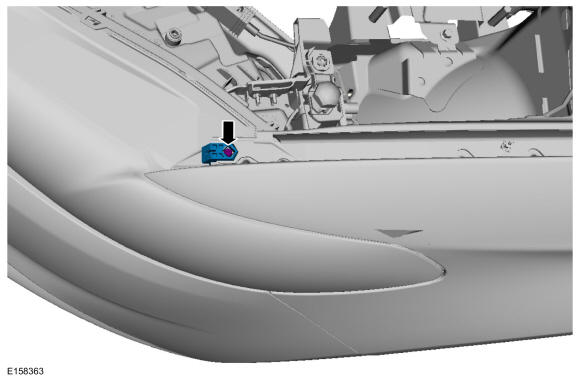

Remove the retainer and the holding tab.

GFD69394

Courtesy of FORD MOTOR COMPANY

10.

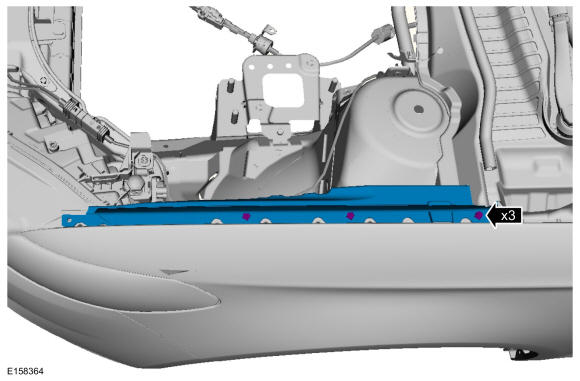

Remove the retainers and the cowl filler panel.

GFD69395

Courtesy of FORD MOTOR COMPANY

11.

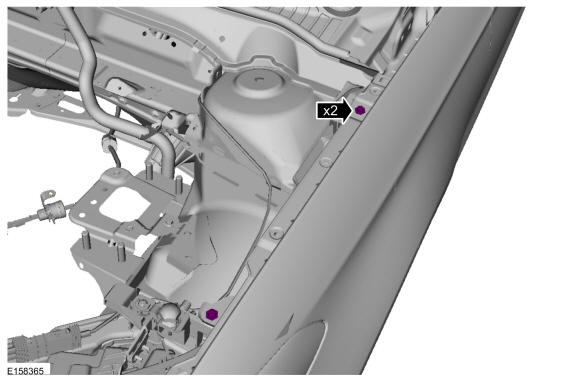

Remove the bolts.
Torque

: 80 lb.in (9 Nm)

GFD69396

Courtesy of FORD MOTOR COMPANY

12.

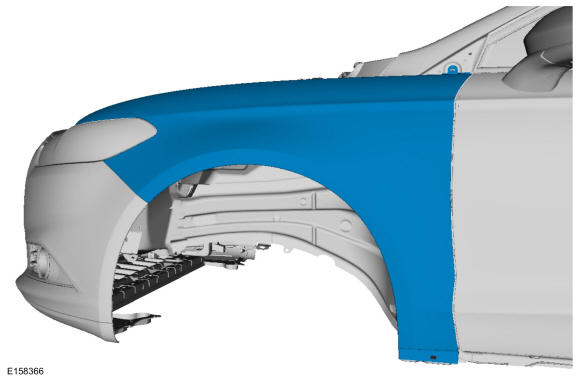

Remove the fender.

GFD69397

Courtesy of FORD MOTOR COMPANY
