Active Grille Shutter: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
Remove the front bumper cover. REFER to: Front Bumper Cover .
- 3.
If equipped, remove the charge air cooler.
- 4.

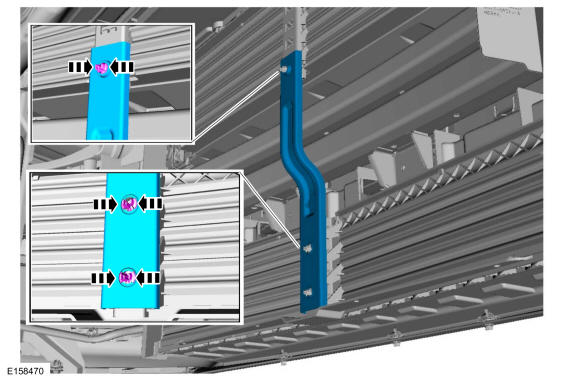

Release the retaining tabs and remove the linkage.
- 5.

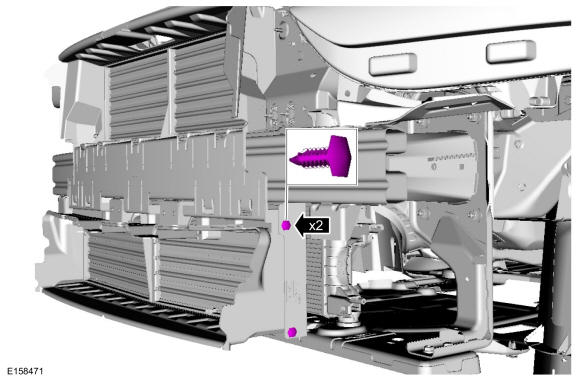

On both sides. Remove the pin-type retainers.
- 6.

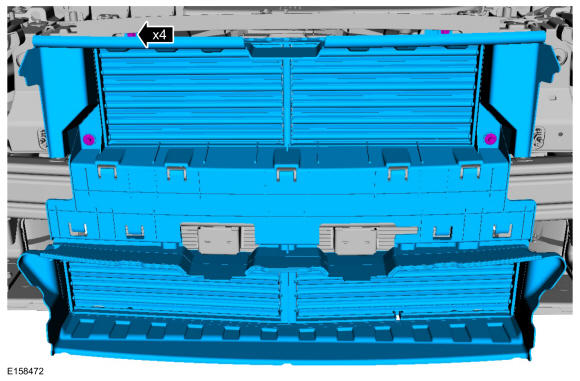

Remove the bolts and the active grille shutter.Torque
: 53 lb.in (6 Nm)
