Luggage Compartment Lid: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

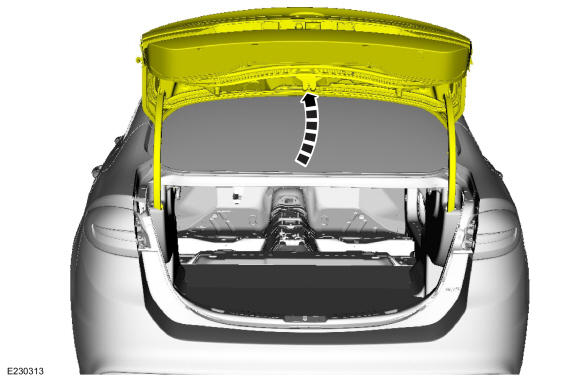

Open the luggage compartment lid.
- 2.
- 1.

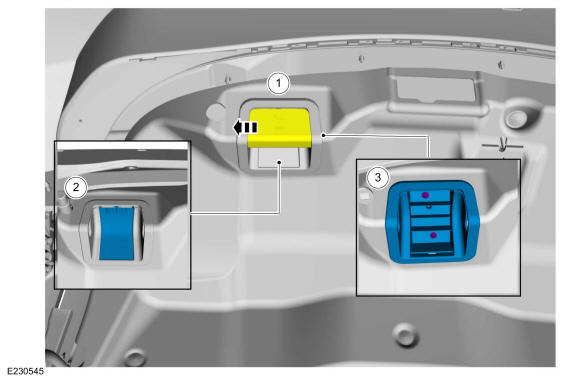

Position aside the luggage compartment lid pull handle cover.
- 2.
Remove the trim cover.
- 3.
Remove the screws and the luggage compartment pull handle.
- 1.
- 3.

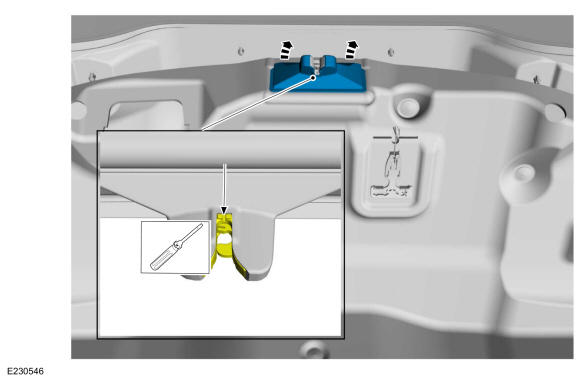

Insert a flat blade screwdriver in the latch housing slot and slowly pry down to disengage the tabs on the latch and remove the trim cover.Use the General Equipment: Flat-Bladed Screwdriver
- 4.
- 1.

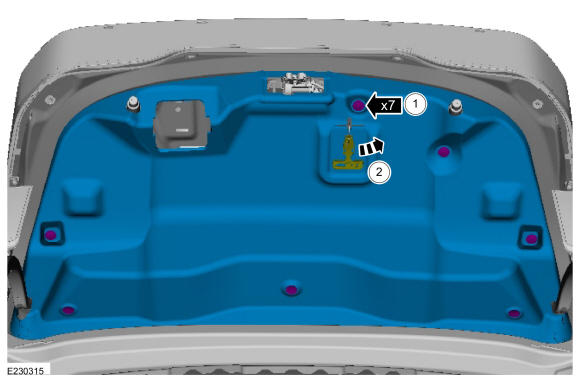

Remove the pin-type retainers.
- 2.
Remove the trim panel, passing the emergency release handle through the trim panel opening.
- 1.
- 5.

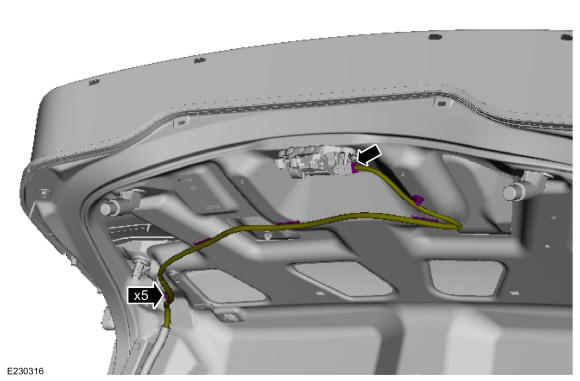

Disconnect the electrical connector, detach the wiring harness retainers and position the wiring harness aside.
- 6.

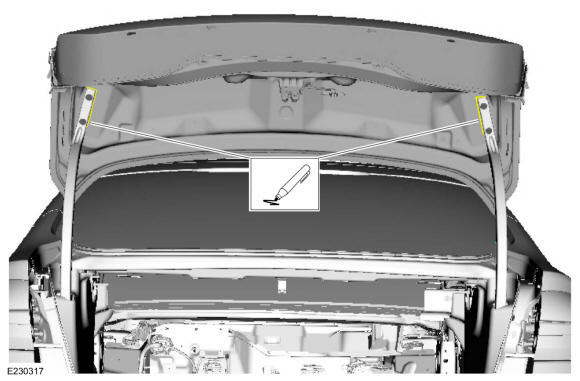

Index-mark the hinge location to aid in luggage compartment lid installation.
- 7.

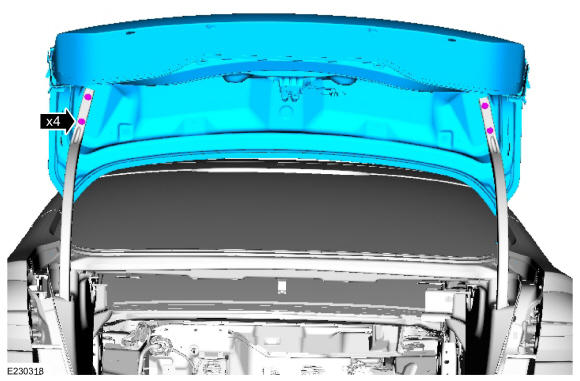

Remove the bolts and the luggage compartment lid.Torque
: 89 lb.in (10 Nm)
