Luggage Compartment Lid Hinge: Removal

NOTE: Left hand (LH) side shown in illustration, right hand (RH) side similar.
  1. Remove the luggage compartment lid. Refer to: Luggage Compartment Lid .
  2. Remove the parcel shelf trim. Refer to: PARCEL SHELF .
  3. Loosen but do not remove the hinge fasteners.
    GFD436935Courtesy of FORD MOTOR COMPANY

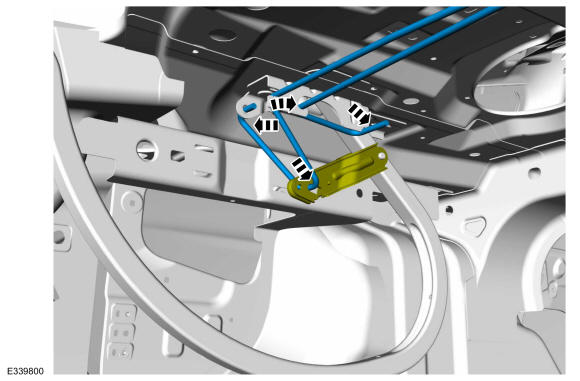

  4. Remove the luggage compartment lid torsion springs.
    GFD436936Courtesy of FORD MOTOR COMPANY
  5. Remove the fasteners.
    GFD436937Courtesy of FORD MOTOR COMPANY
  6. Remove the luggage compartment lid hinge.
GFD436938Courtesy of FORD MOTOR COMPANY
