Luggage Compartment Lid Hinge: Installation

NOTE: Left hand (LH) side shown in illustration, right hand (RH) side similar.

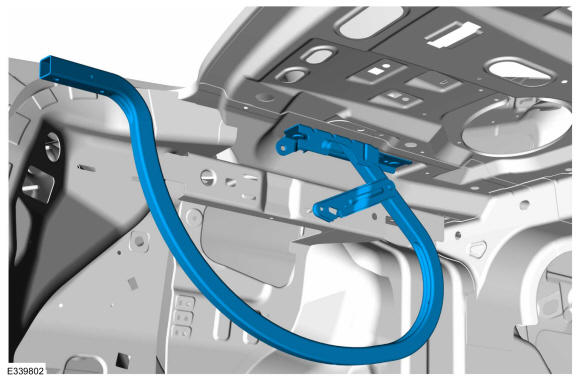

Position the luggage compartment lid hinge in the vehicle.

Courtesy of FORD MOTOR COMPANY

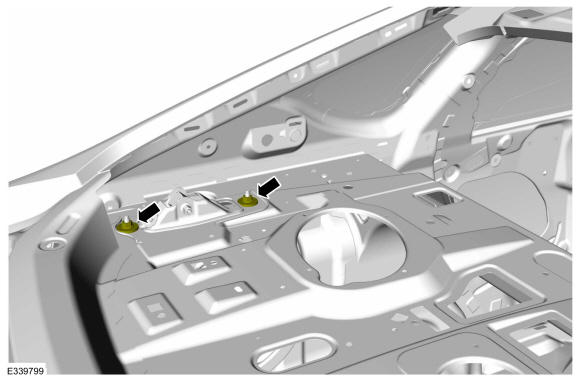

Loosely install the fasteners.

Courtesy of FORD MOTOR COMPANY

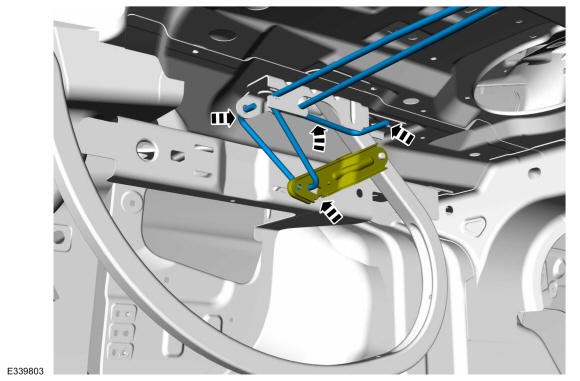

Install the luggage compartment lid torsion springs.

Courtesy of FORD MOTOR COMPANY

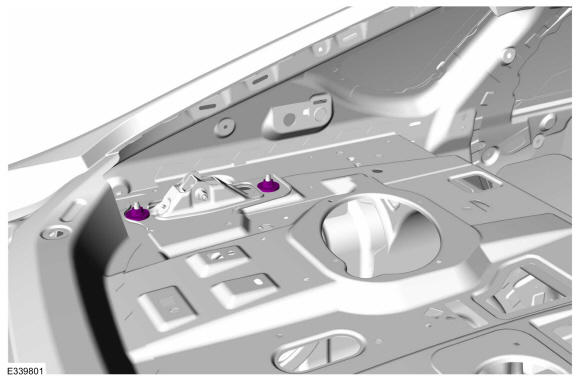

Tighten the fasteners.
Torque: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY
Install the parcel shelf trim. Refer to: PARCEL SHELF .
Install and align the luggage compartment lid. Refer to: Luggage Compartment Lid . Refer to: Luggage Compartment Lid Alignment .
