Ignition Lock Cylinder Housing: Removal

  1. 1.

    WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.

    Follow the health and safety precautions. Refer to: Health and Safety Precautions .

  1. 2.

    Remove the SCCM. Refer to: Steering Column Control Module (SCCM) .

  1. 3.

    Remove the RH side bolt.
GFD66797Courtesy of FORD MOTOR COMPANY

  1. 4.

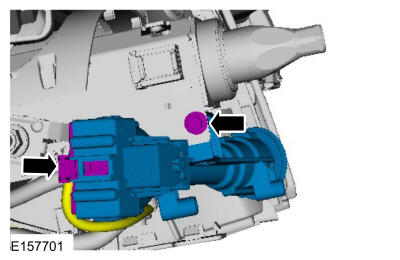

    Disconnect the electrical connector and remove the LH side bolt.
GFD66798Courtesy of FORD MOTOR COMPANY
