Accessories & Equipment
>>
Seats
>>
Seating System - Rear (Except Hybrid)
>>
Removal And Installation
>>
Rear Seat Cushion
>>
Removal
Rear Seat Cushion: Removal

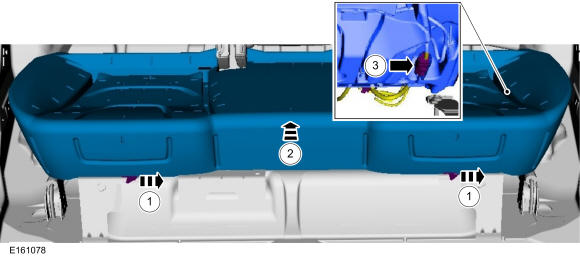

1.
Remove the rear seat cushion.
1.
Release the locking tabs.
2.
Position the rear seat cushion upward.
3.
If equipped with heated seats. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
