Rear Seat Armrest: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the rear seat cushion. Refer to: Rear Seat Cushion .
- 2.
- 1.
Lift the rear seat latch release handle.
- 2.
Lower the rear seat backrest.
- 1.
- 3.
If equipped with heated seats. Disconnect the heated seat electrical connector.
- 4.
- 1.
Lower the backrest.
- 2.
Rotate the backrest hinge locking arm rearward and release the backrest.
- 3.
Remove the seat backrest.
- 1.
- 5.

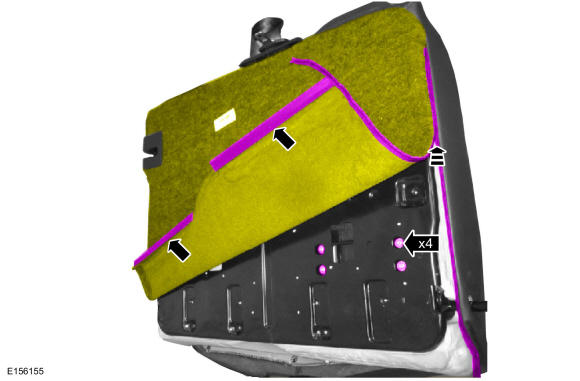

Unzip the backrest cover, release the backrest cover J-clips and remove the bolts.Torque
: 89 lb.in (10 Nm)
- 6.

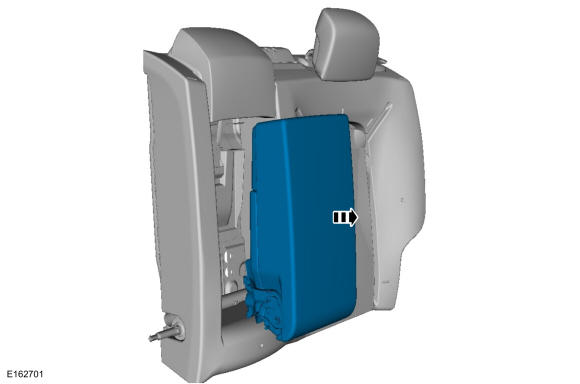

Remove the rear seat armrest.
