System Diagram - Exterior, Heated
Network Message Chart
Module Network Input Messages - DDM
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Mirror Heat Request | FCIM | Used to command the heated exterior mirror glass on and off |
Module Network Input Messages - PDM
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Mirror Heat Request | FCIM | Used to command the heated exterior mirror glass on and off |
Rear View Mirrors - Exterior, Heated
Based on the Mirror Heat Request message received from the FCIM through the Medium Speed Controller Area Network (MS-CAN), the DDM controls the operation of the LH heated exterior mirror glass and the PDM controls the operation of the RH heated exterior mirror glass. On vehicles equipped with a LH exterior auto-dimming mirror, the LH exterior mirror glass takes longer to defrost than the RH exterior mirror glass due to differences in the mirror glass thickness.

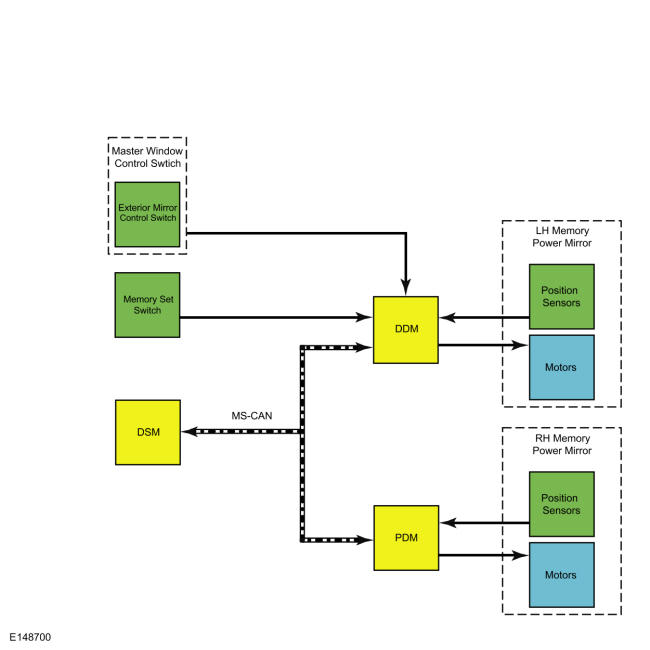

System Diagram - Exterior, Memory
