Information And Entertainment System - General Information - Vehicles With: Sync (Except Hybrid)
>>
Description And Operation
>>

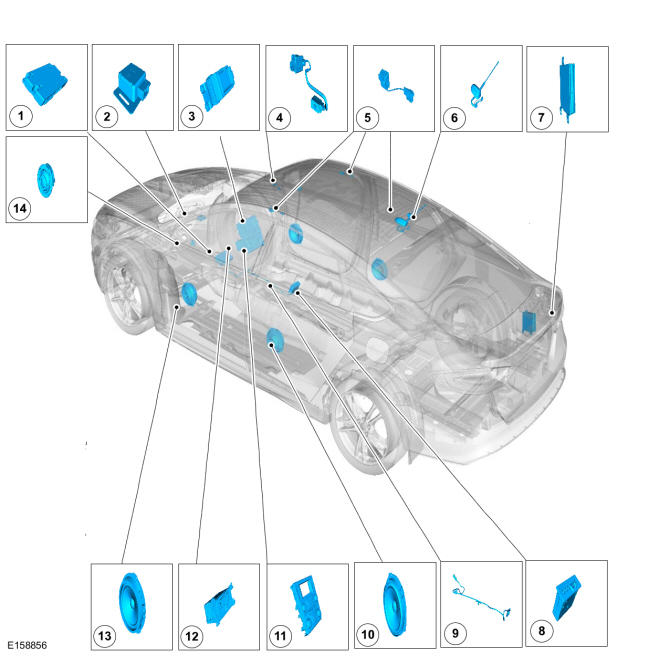

Information and Entertainment System - Component Location
Information and Entertainment System - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
APIM
2
GPSM
3
FCDIM
4
SYNC® microphone
5
Active noise control microphones - HEV
6
Antenna
7
DACMC - HEV
8
USB port
9
USB cable
10
Speaker - rear door
11
FCIM
12
ACM
13
Speaker - front door
14
Speaker - front door tweeter
