Active Park Assist Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Remove the console top trim panel. Refer to: Floor Console .

  1. 3.

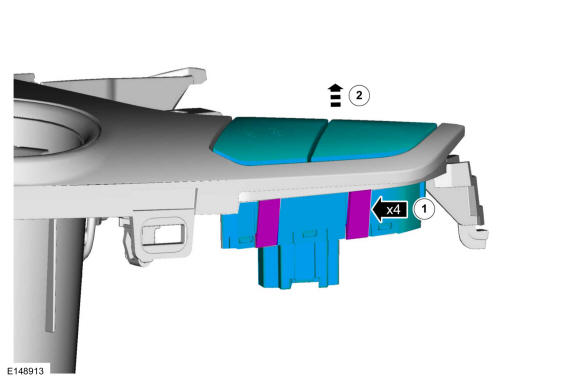

    NOTE: Two tabs on each side.

    1. 1.

      Release the tabs.

    1. 2.

      Remove the active park assist switch.
GFD69135Courtesy of FORD MOTOR COMPANY
