Parking Aid - Component Location

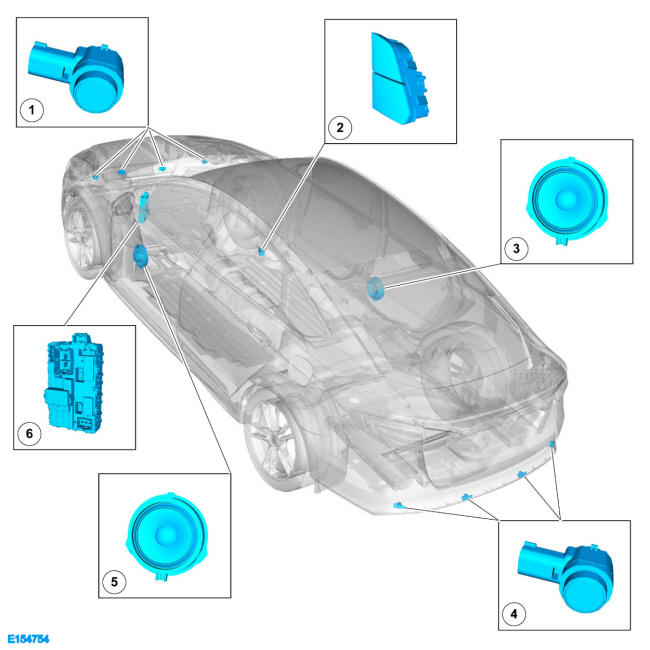

Component Location, Parking Aid - Audible
| Item | Description |
|---|---|
| 1 | Front parking aid sensors |
| 2 | Parking aid switch (if equipped) |
| 3 | Rear speakers (part of audio system) |
| 4 | Rear parking aid sensors |
| 5 | Front speakers (part of audio system) |
| 6 | Parking Aid Module (PAM) (integral to the BCM |

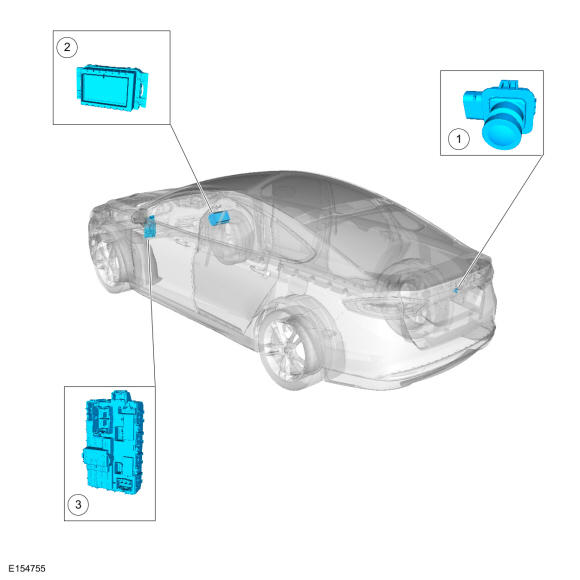

Component Location, Parking Aid - Video
| Item | Description |
|---|---|
| 1 | Video camera |
| 2 | FDIM or FCDIM |
| 3 | BCM |
