OEM Wiring Diagram Symbols (Hybrid/ENERGI): Symbols

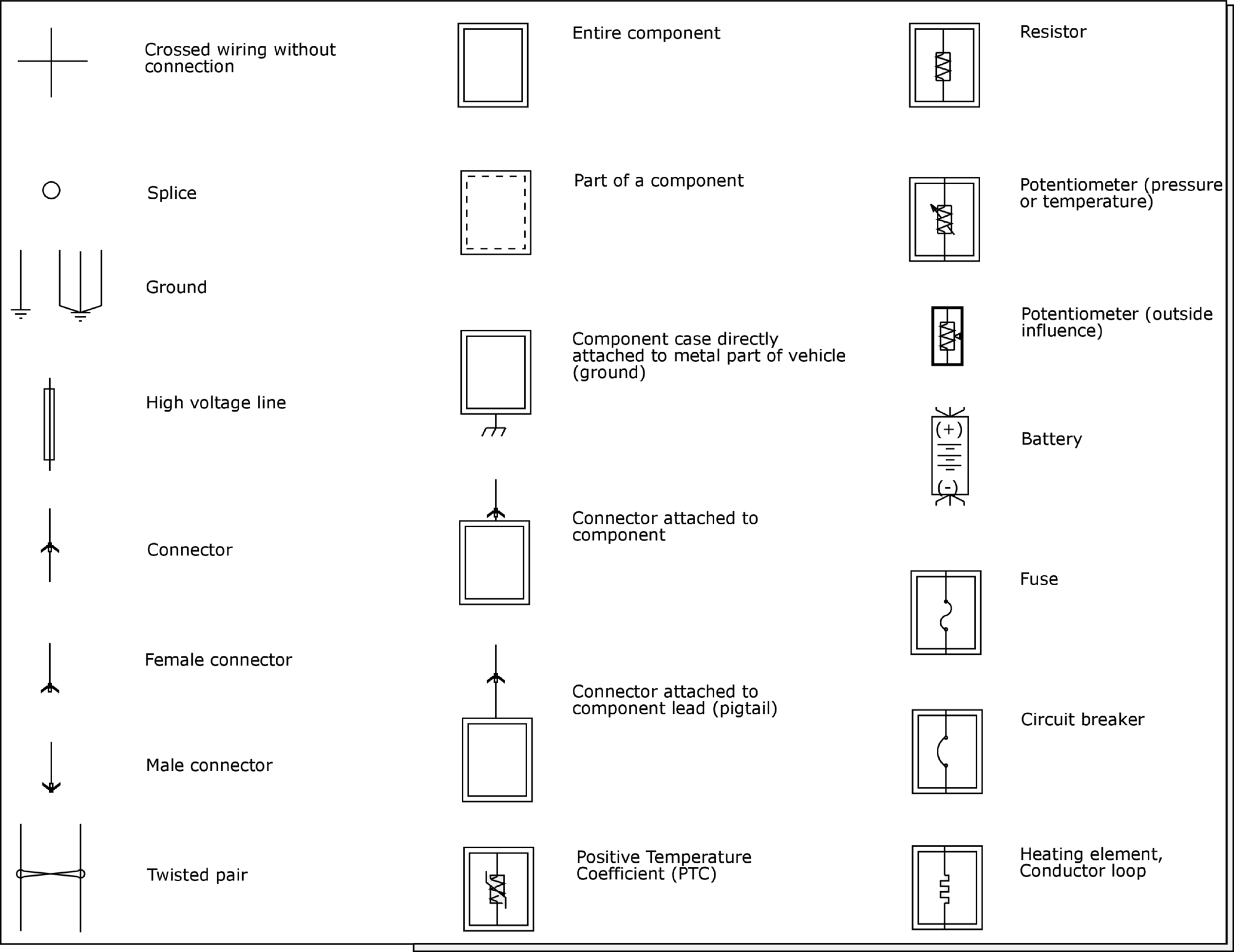

GFDW51540Courtesy of FORD MOTOR COMPANY

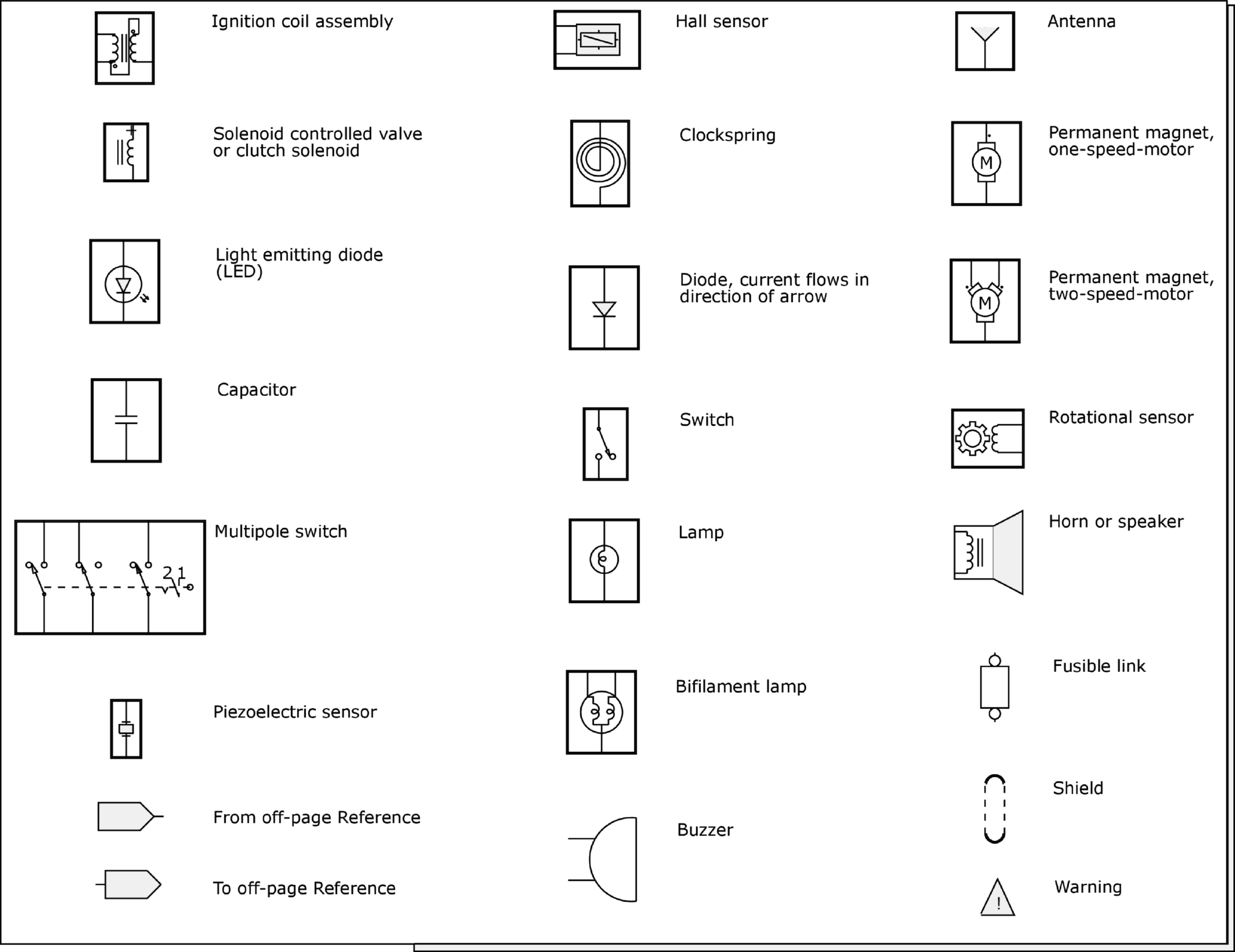

GFDW51541Courtesy of FORD MOTOR COMPANY

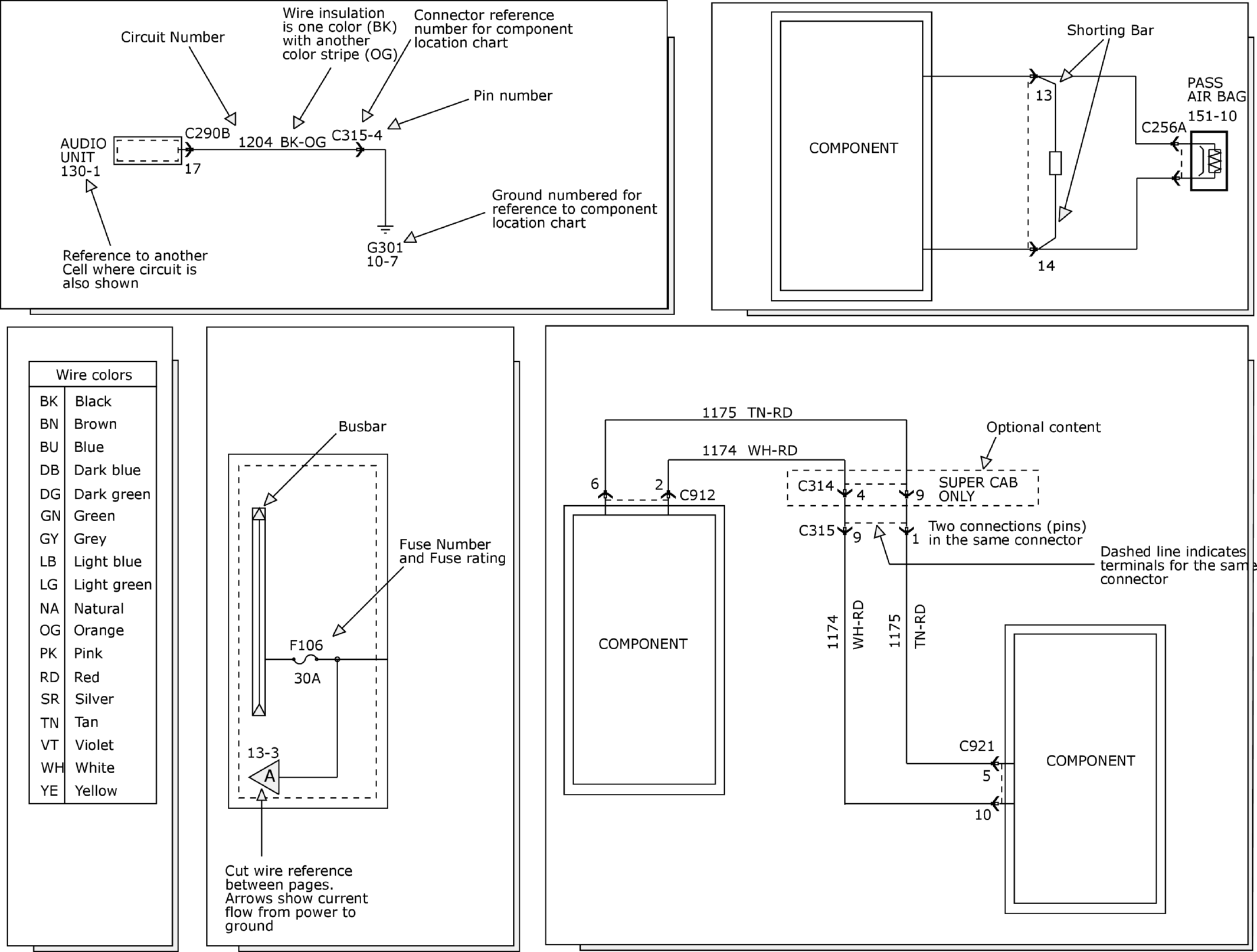

GFDW51542Courtesy of FORD MOTOR COMPANY

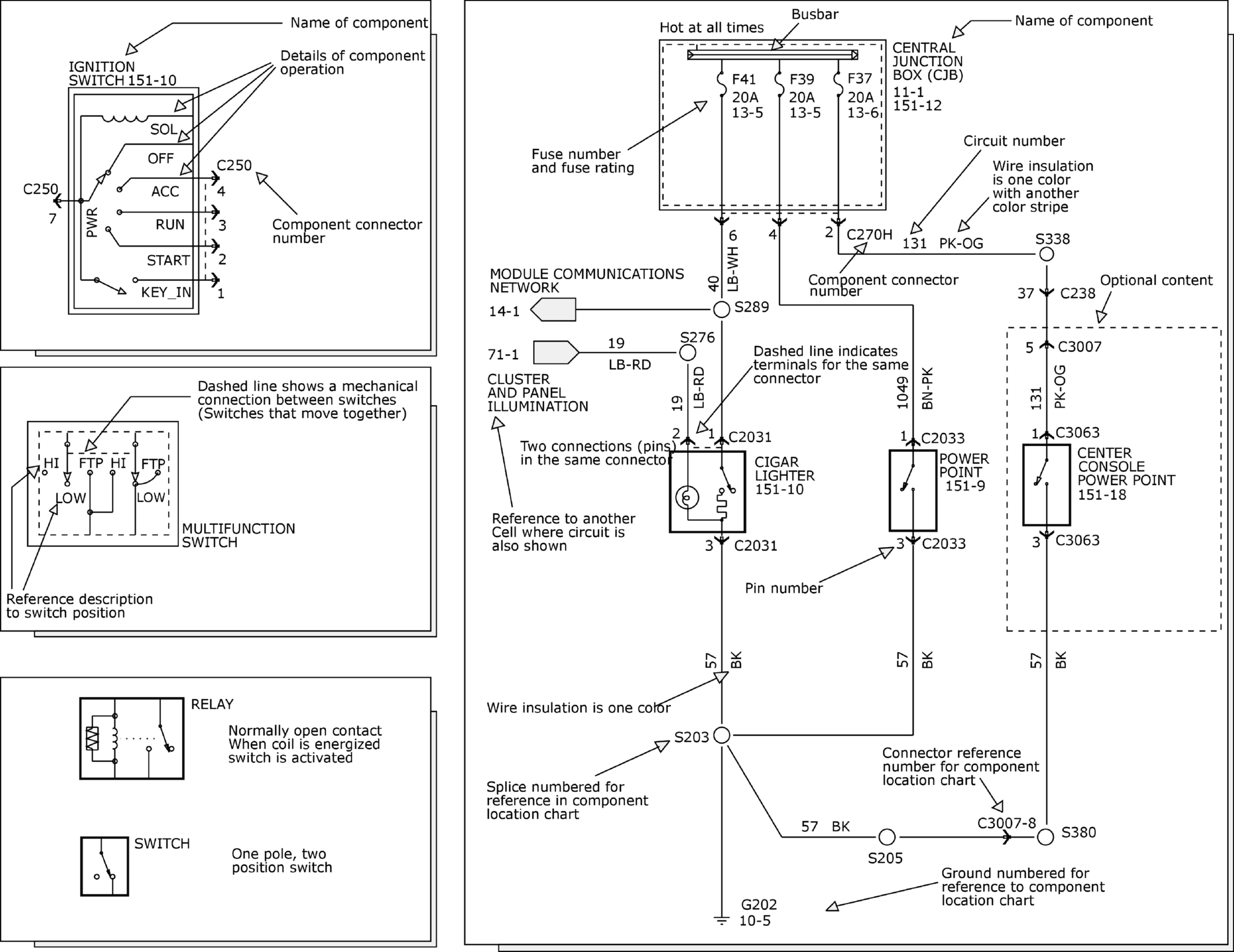

GFDW51543Courtesy of FORD MOTOR COMPANY

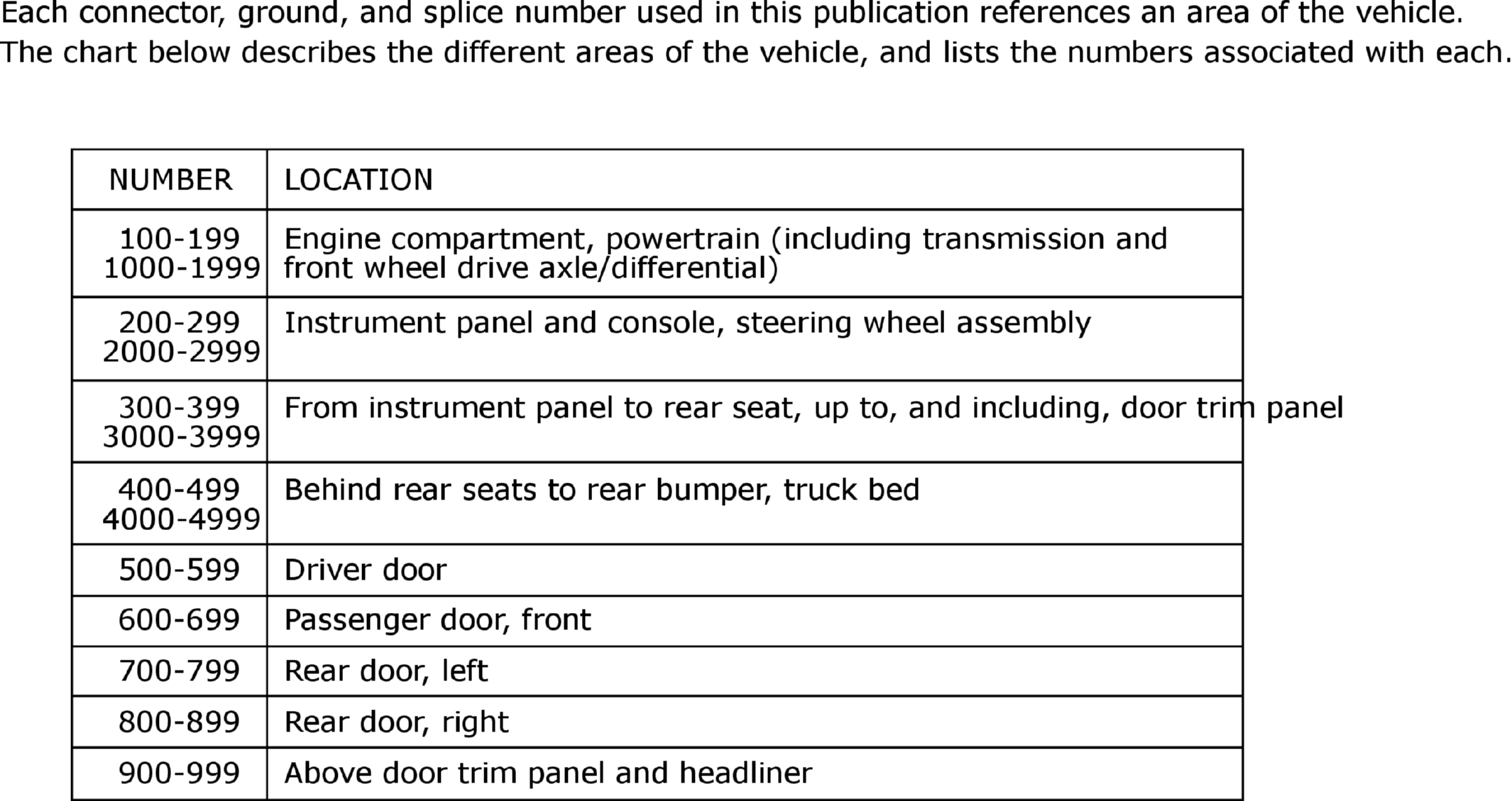

GFDW51544Courtesy of FORD MOTOR COMPANY
