Connector End View (C3047) - INLINE
InlineC3047
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

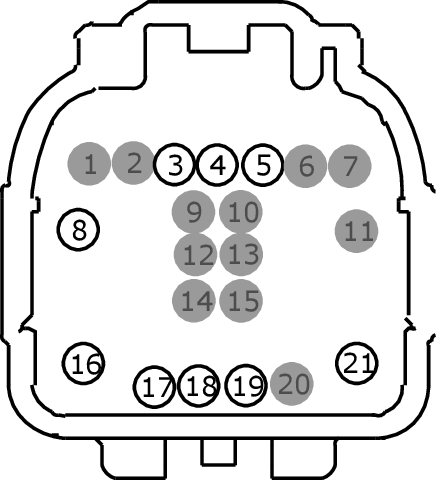

MALE
Harness 14A005

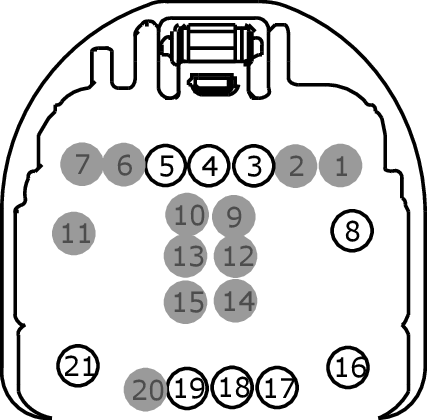

FEMALE
Harness 19K315
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | CHS52 (BU) | 22 | 14A005 |
| 3 | CHS52 (BU) | 26 | 19K315 |
| 4 | CHS53 (WH) | 26 | 19K315 |
| 4 | CHS53 (WH-BN) | 22 | 14A005 |
| 5 | CHS31 (YE) | 26 | 19K315 |
| 5 | CHS31 (YE-OG) | 22 | 14A005 |
| 6 | * | * | |
| 7 | * | * | |
| 8 | CBP36 (BU-BN) | 18 | 14A005 |
| 8 | CBP36 (WH) | 22 | 19K315 |
| 9 | * | * | 14A005 |
| 9 | VDB29 (GN) | 26 | 19K315 |
| 10 | * | * | 14A005 |
| 10 | VDB30 (WH-RD) | 26 | 19K315 |
| 11 | * | * | 14A005 |
| 11 | SBP03 (BU-RD) | 20 | 19K315 |
| 12 | * | * | 14A005 |
| 12 | VDB29 (GN-WH) | 26 | 19K315 |
| 13 | * | * | 14A005 |
| 13 | VDB30 (WH) | 26 | 19K315 |
| 14 | * | * | |
| 15 | * | * | |
| 16 | SBB73 (RD) | 16 | |
| 17 | CHS48 (YE) | 22 | 14A005 |
| 17 | CHS48 (YE) | 26 | 19K315 |
| 18 | CHS49 (VT) | 22 | 14A005 |
| 18 | CHS49 (VT) | 26 | 19K315 |
| 19 | CHS80 (BU) | 26 | 19K315 |
| 19 | CHS80 (BU-OG) | 22 | 14A005 |
| 19 | CHS80 (BU-OG) | 26 | 19K315 |
| 20 | * | * | 14A005 |
| 20 | GD382 (BK-GY) | 20 | 19K315 |
| 21 | GD382 (BK-GY) | 12 | 14A005 |
| 21 | GD382 (BK-GY) | 16 | 19K315 |
