Variable Camshaft Timing Bank 1 Solenoid 1 (VCT11)

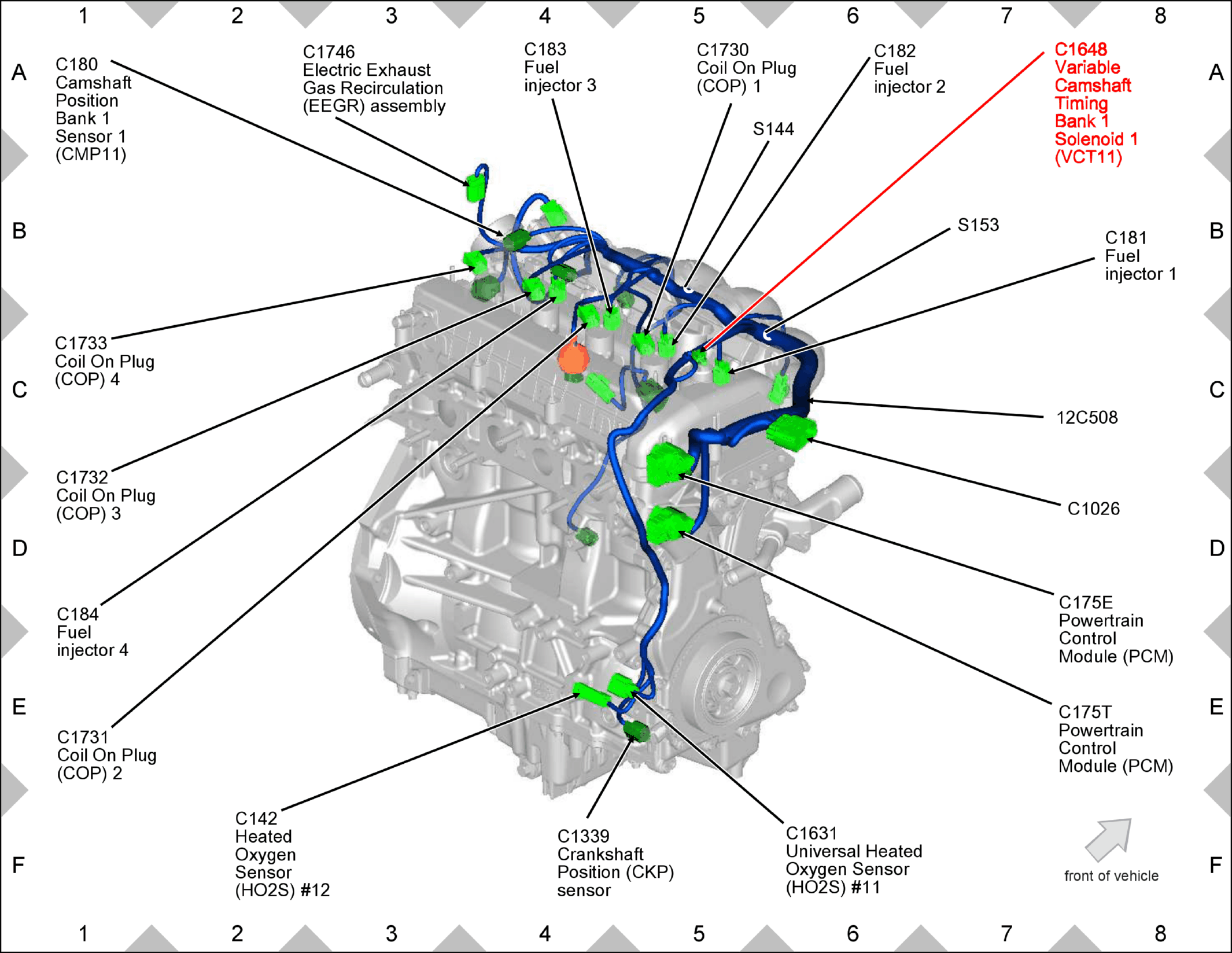

Fig 1: Variable Camshaft Timing Bank 1 Solenoid 1 (VCT11) Component Location

GFDW51908

Courtesy of FORD MOTOR COMPANY
