Splice Block 52

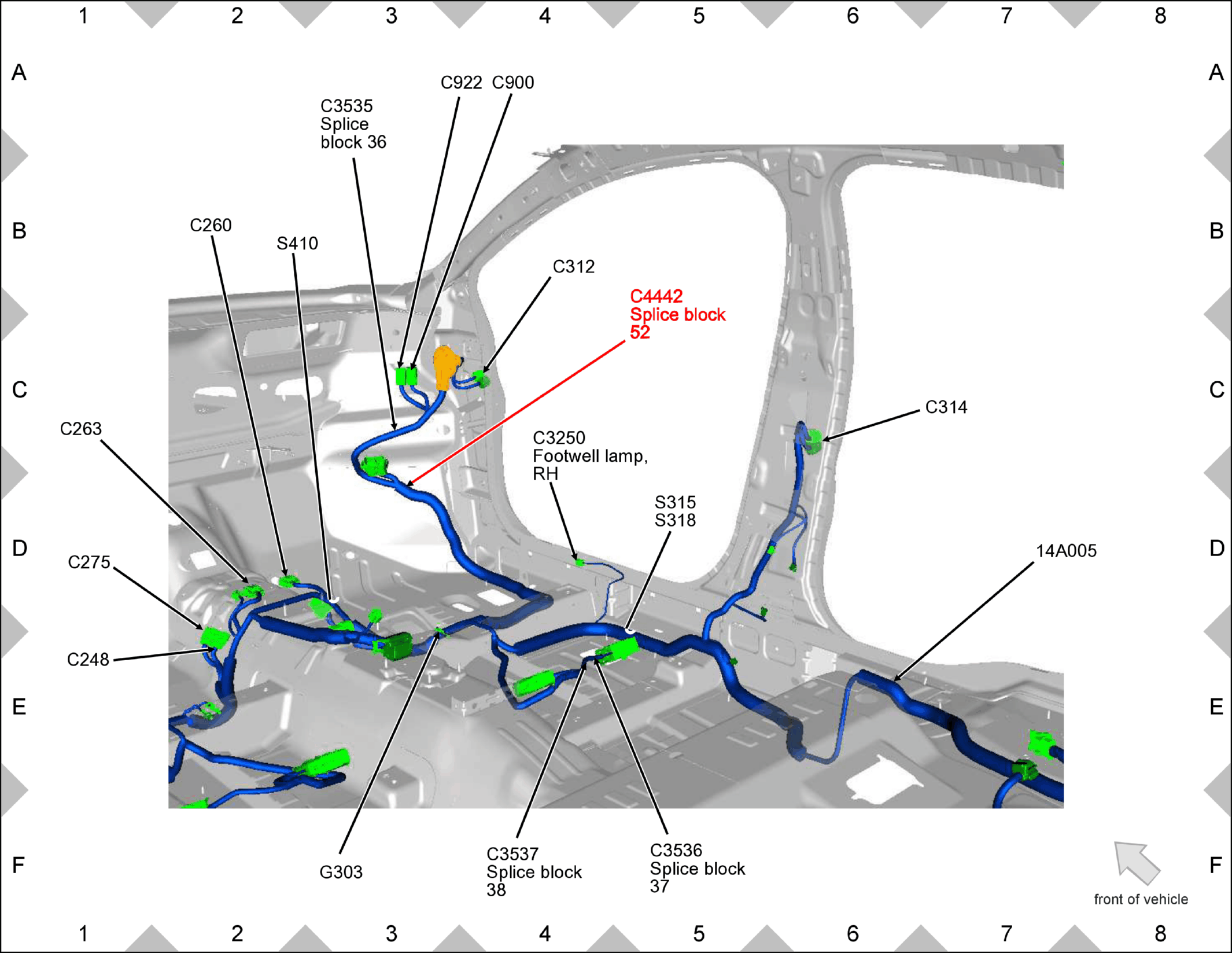

Fig 1: Splice Block 52 Component Location

GFDW51879

Courtesy of FORD MOTOR COMPANY
