Splice Block 47

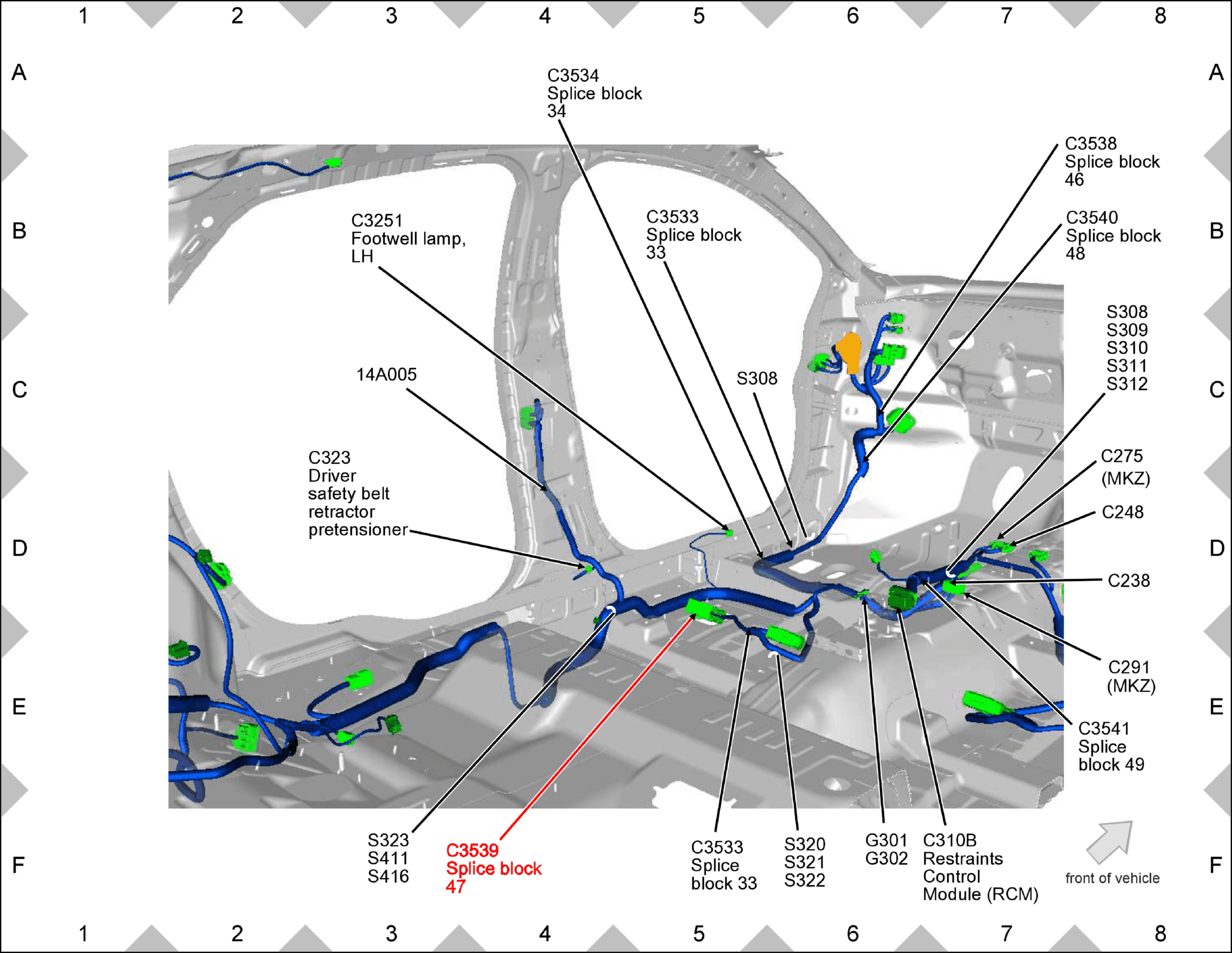

Fig 1: Splice Block 47 Component Location

GFDW51871

Courtesy of FORD MOTOR COMPANY
