Splice Block 14

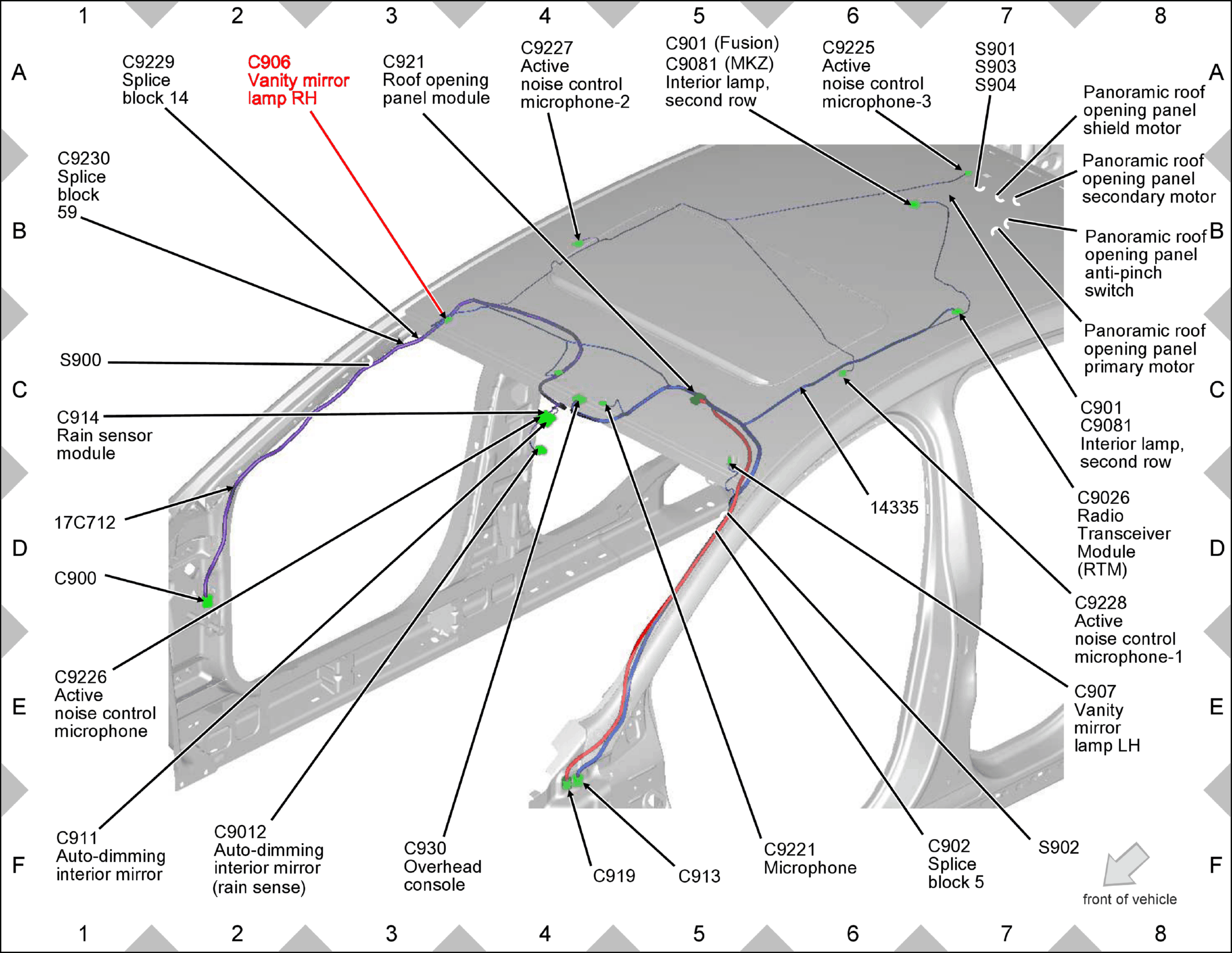

Fig 1: Splice Block 14 Component Location

GFDW51834

Courtesy of FORD MOTOR COMPANY
