Home >> Ford >> 2016 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts (Hybrid/ENERGI) >> Component Location Charts >> Seat Backrest Blower Motor, Driver Side

Seat Backrest Blower Motor, Driver Side

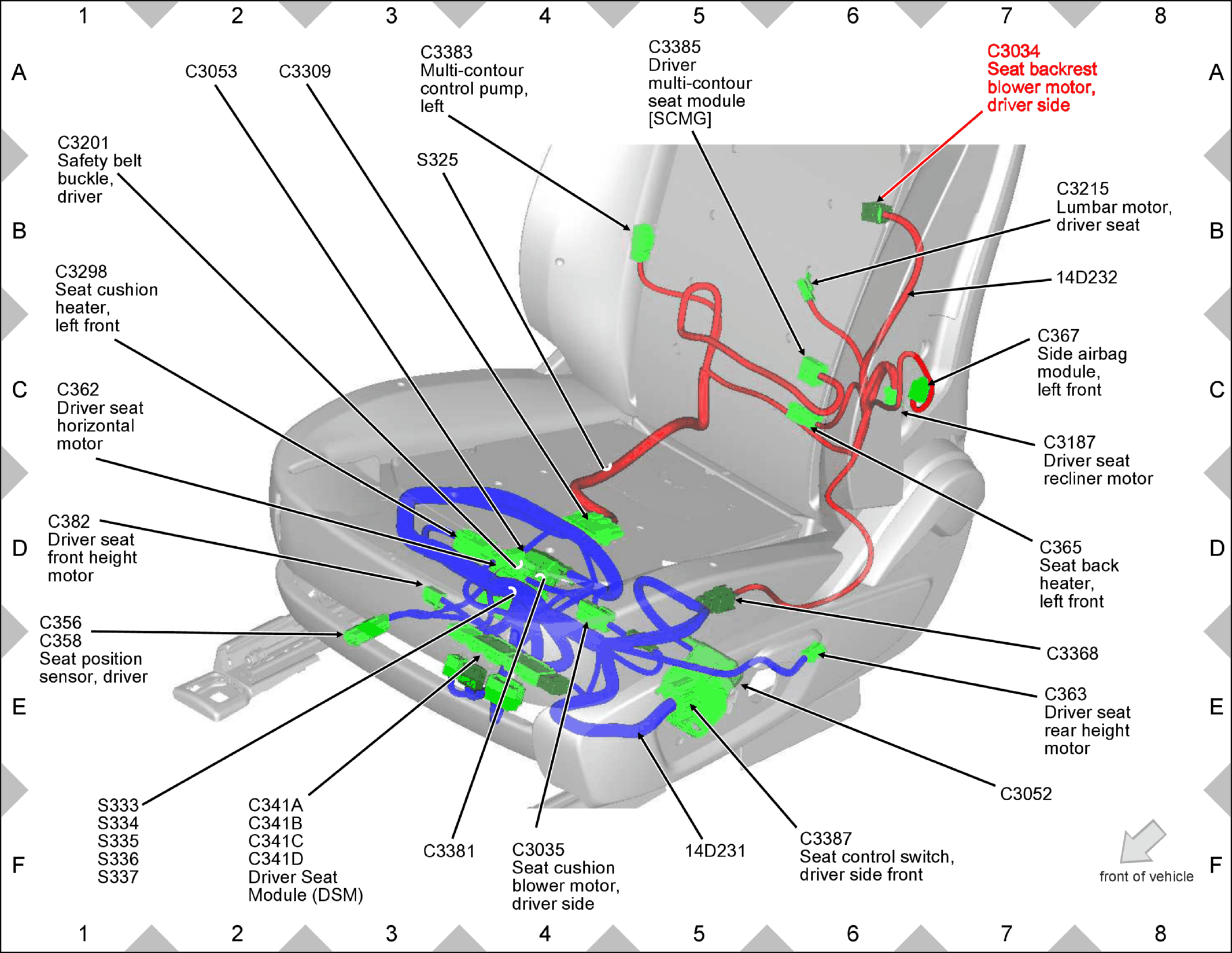

Fig 1: Seat Backrest Blower Motor, Driver Side Component Location

GFDW51816

Courtesy of FORD MOTOR COMPANY
