Safety Belt Tension Sensor (BTS), Passenger

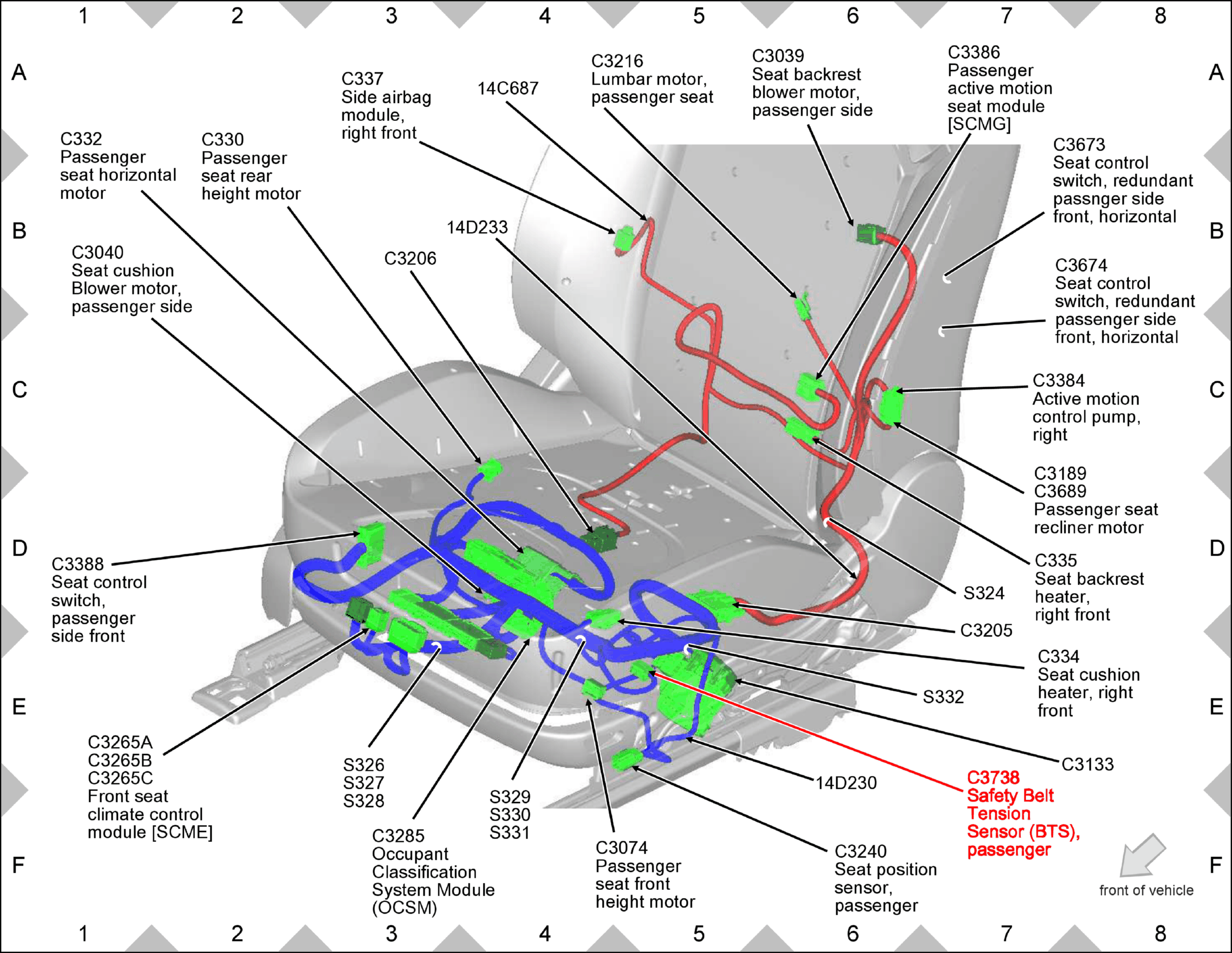

Fig 1: Safety Belt Tension Sensor (BTS), Passenger Component Location

GFDW51814

Courtesy of FORD MOTOR COMPANY
