Rear Door Window Control Switch LH (Fusion)

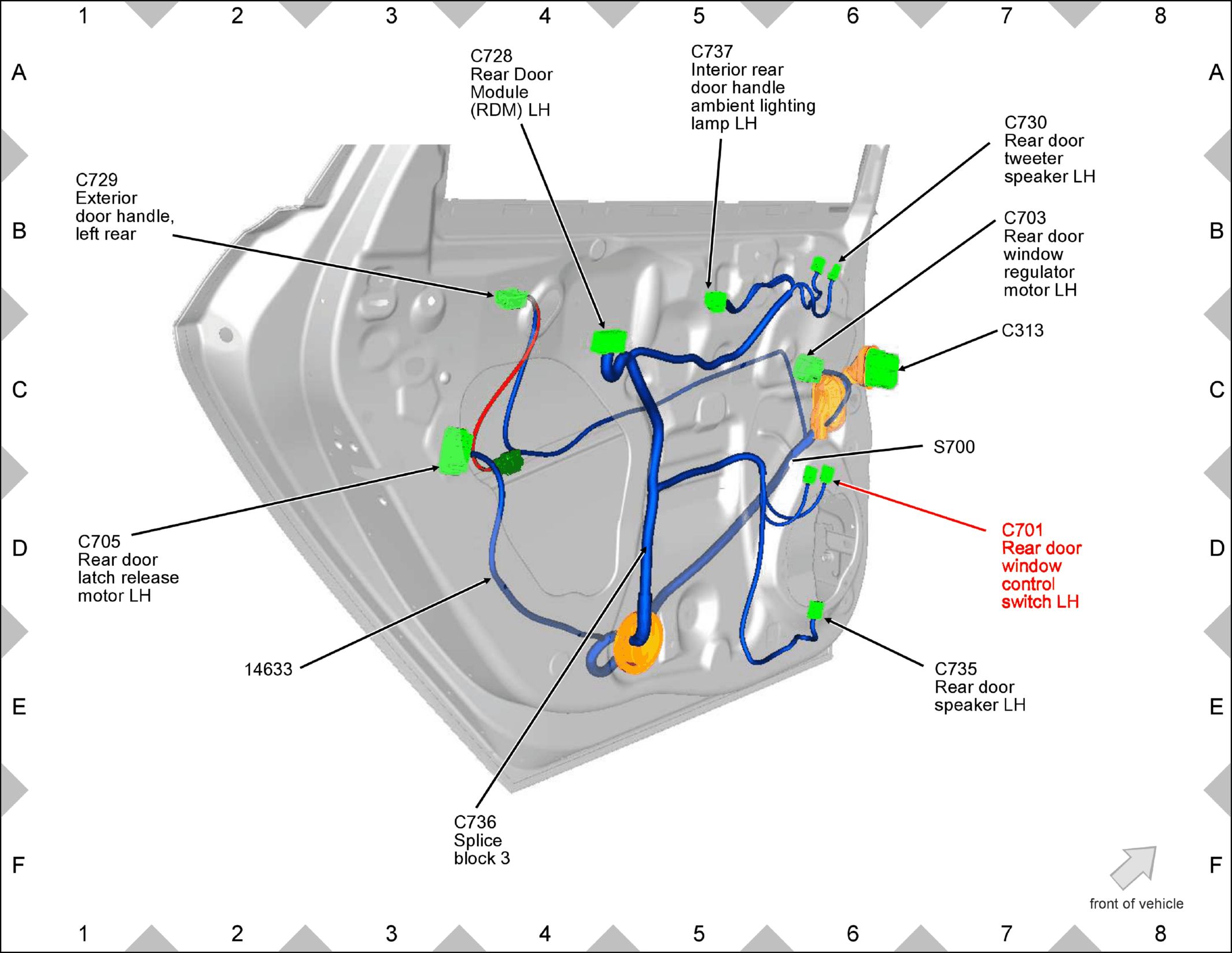

Fig 1: Rear Door Window Control Switch LH (Fusion) Component Location

GFDW51795

Courtesy of FORD MOTOR COMPANY
