Passenger Door Module (PDM) (Fusion)

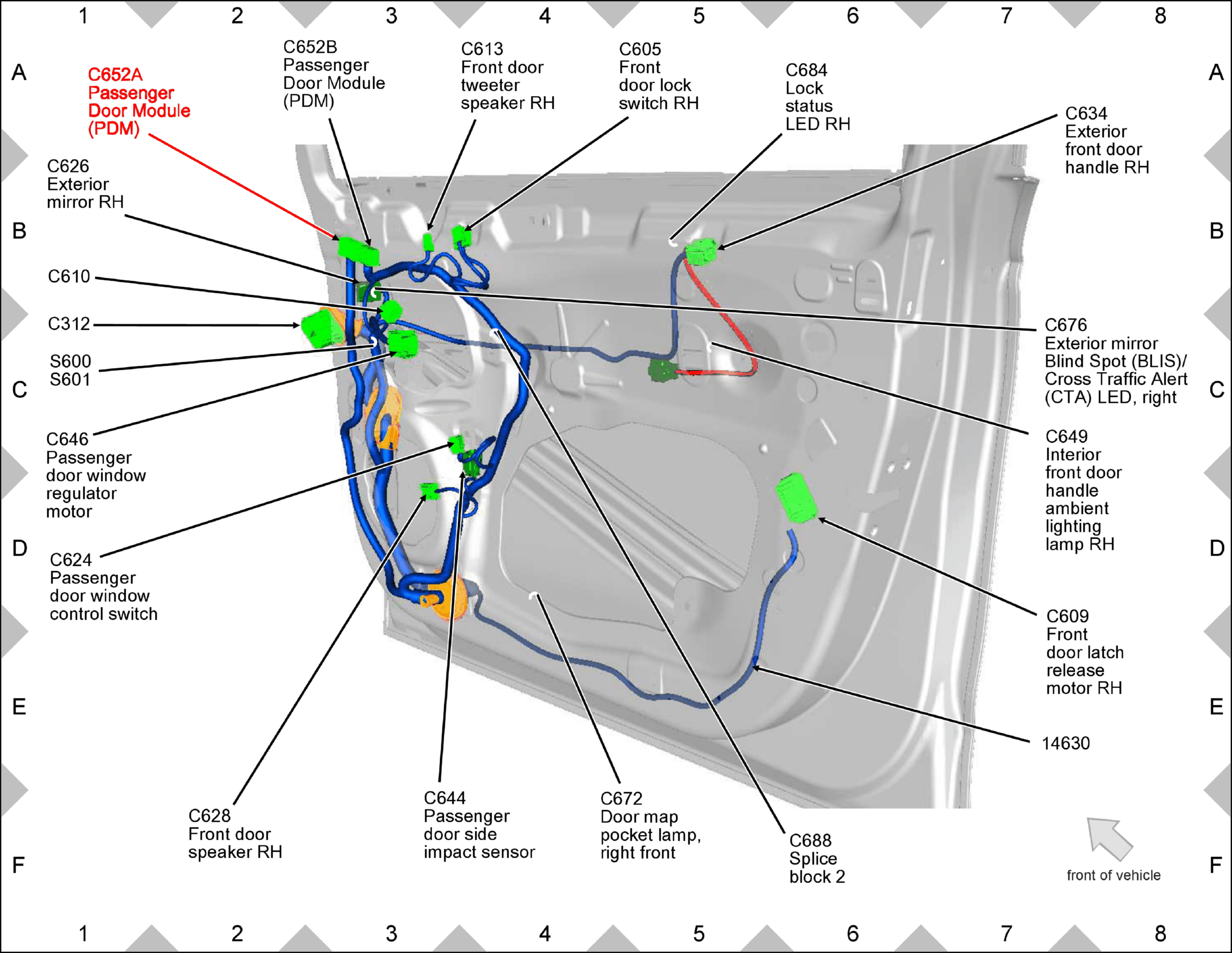

Fig 1: Passenger Door Module (PDM) (Fusion) Component Location
GFDW51766Courtesy of FORD MOTOR COMPANY
