Passenger Active Motion Seat Module [SCMG]

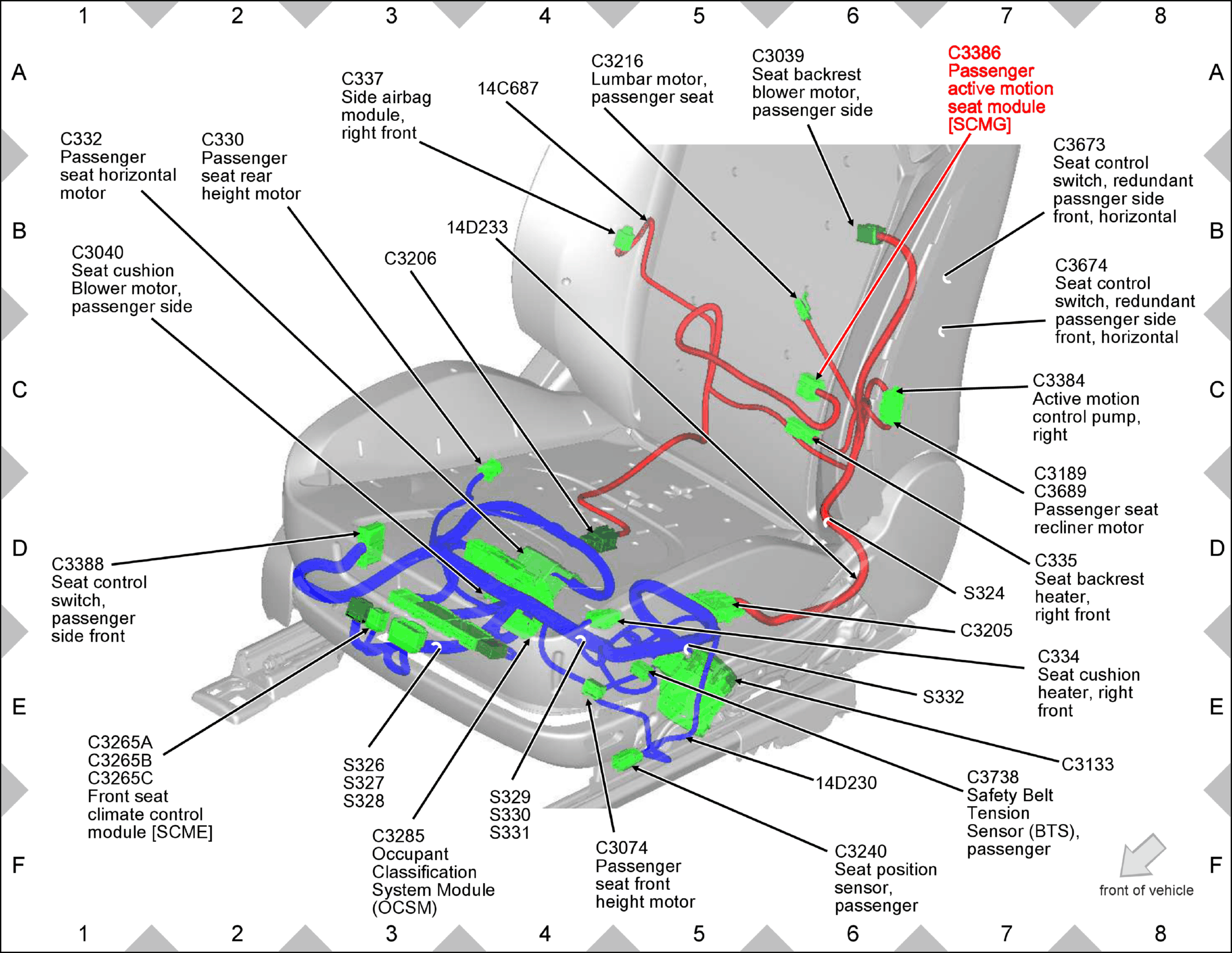

Fig 1: Passenger Active Motion Seat Module [SCMG] Component Location

GFDW51763

Courtesy of FORD MOTOR COMPANY
