Panoramic Roof Opening Panel Anti-Pinch Switch In Roof Panel, Rear

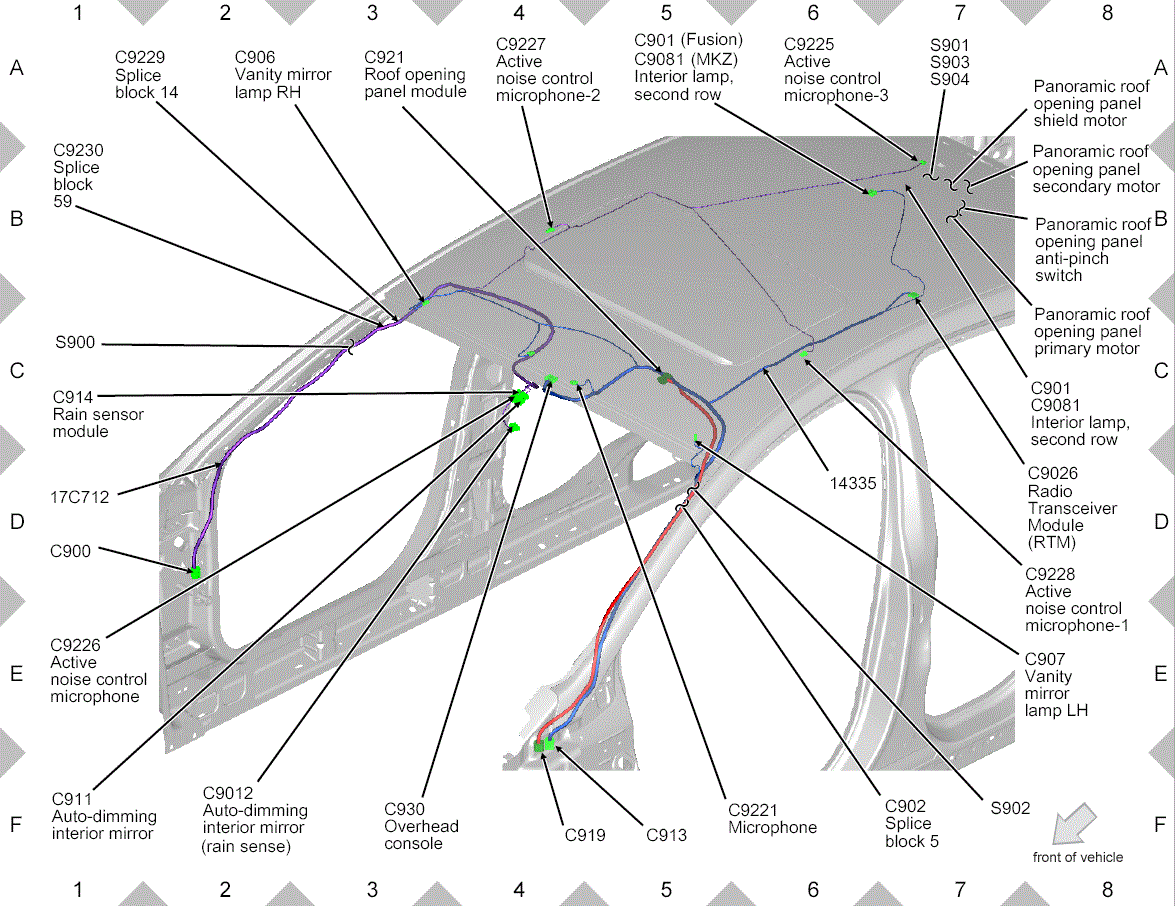

Fig 1: Panoramic Roof Opening Panel Anti-Pinch Switch In Roof Panel, Rear Component Location

G00567925

Courtesy of FORD MOTOR CO.
