Lumbar Motor, Passenger Seat
Lumbar Motor, Passenger Seat

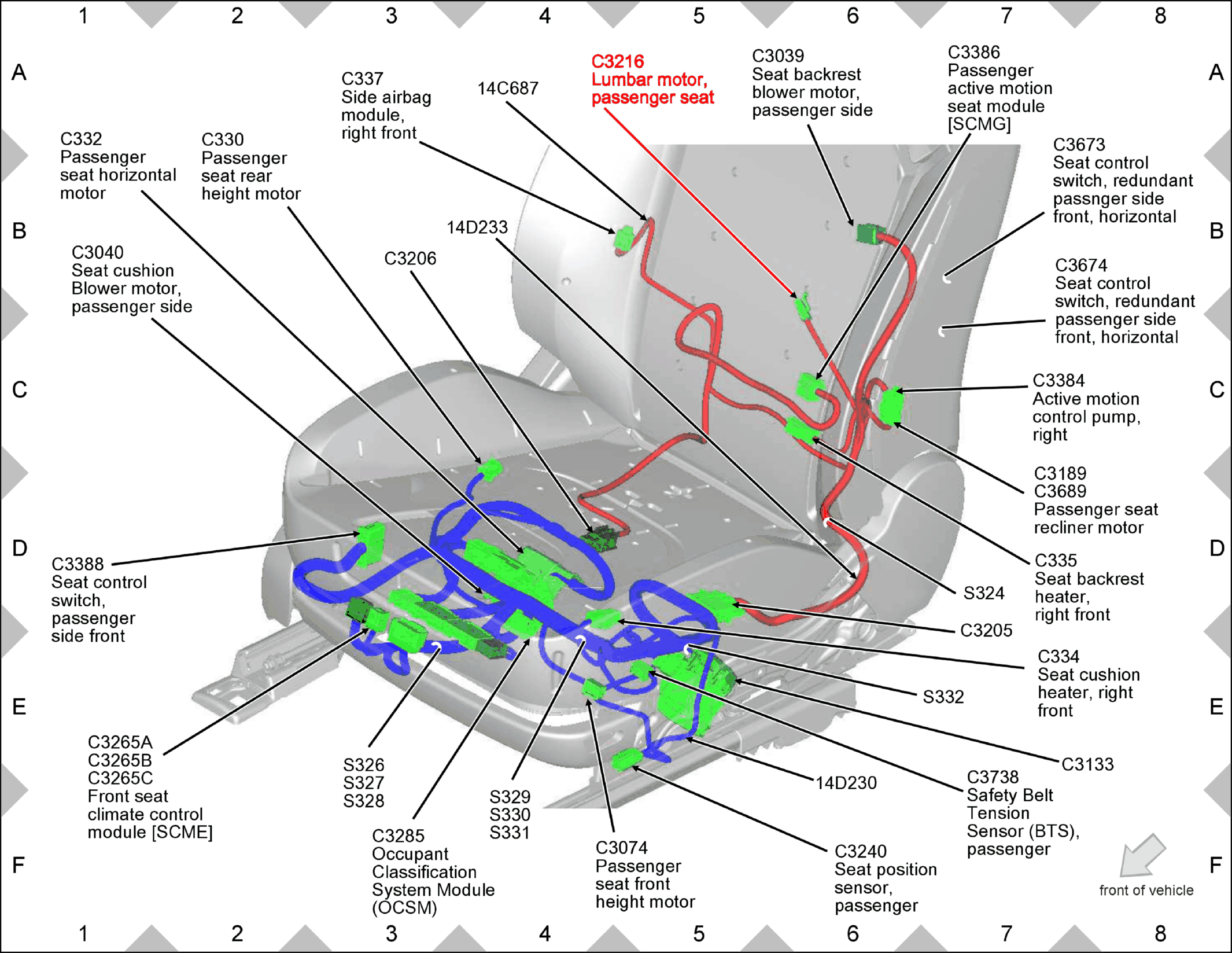

Fig 1: Lumbar Motor, Passenger Seat Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
