Lumbar Motor, Driver Seat
Lumbar Motor, Driver Seat

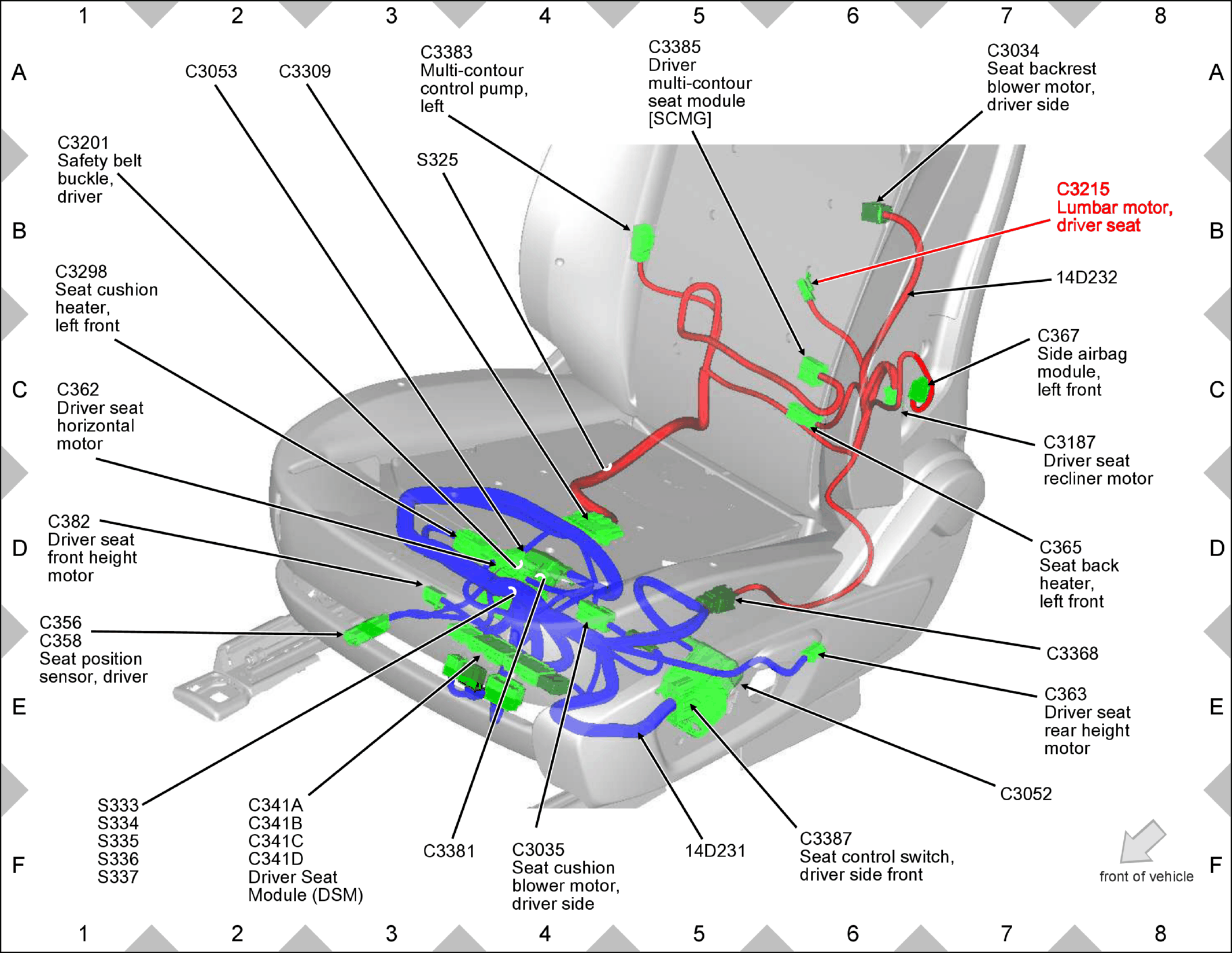

Fig 1: Lumbar Motor, Driver Seat Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
