Interior Lamp, Second Row

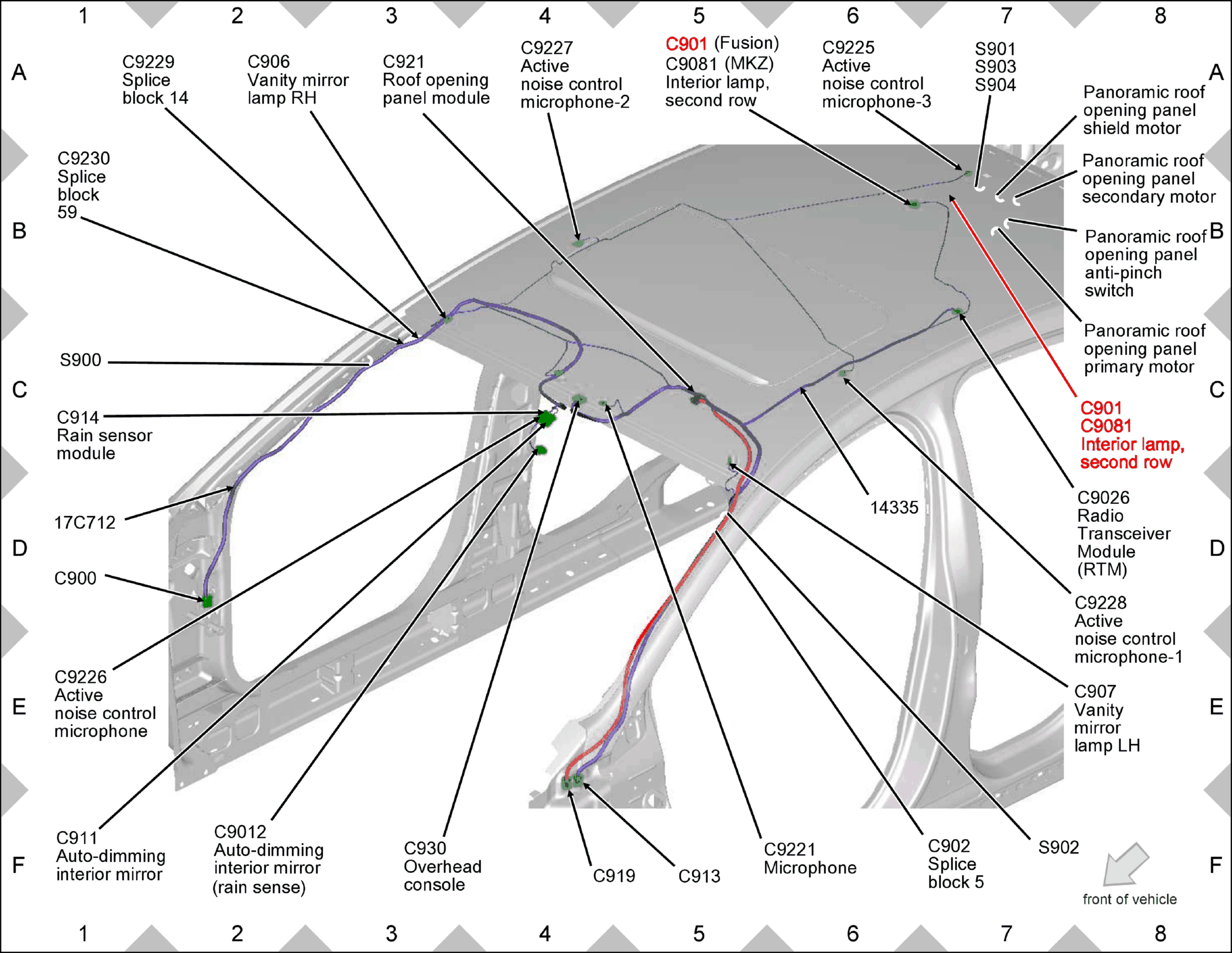

Fig 1: Interior Lamp, Second Row Component Location

GFDW51735

Courtesy of FORD MOTOR COMPANY
