Interior Front Door Handle Ambient Lighting Lamp LH (Fusion)
Interior Front Door Handle Ambient Lighting Lamp LH (Fusion)

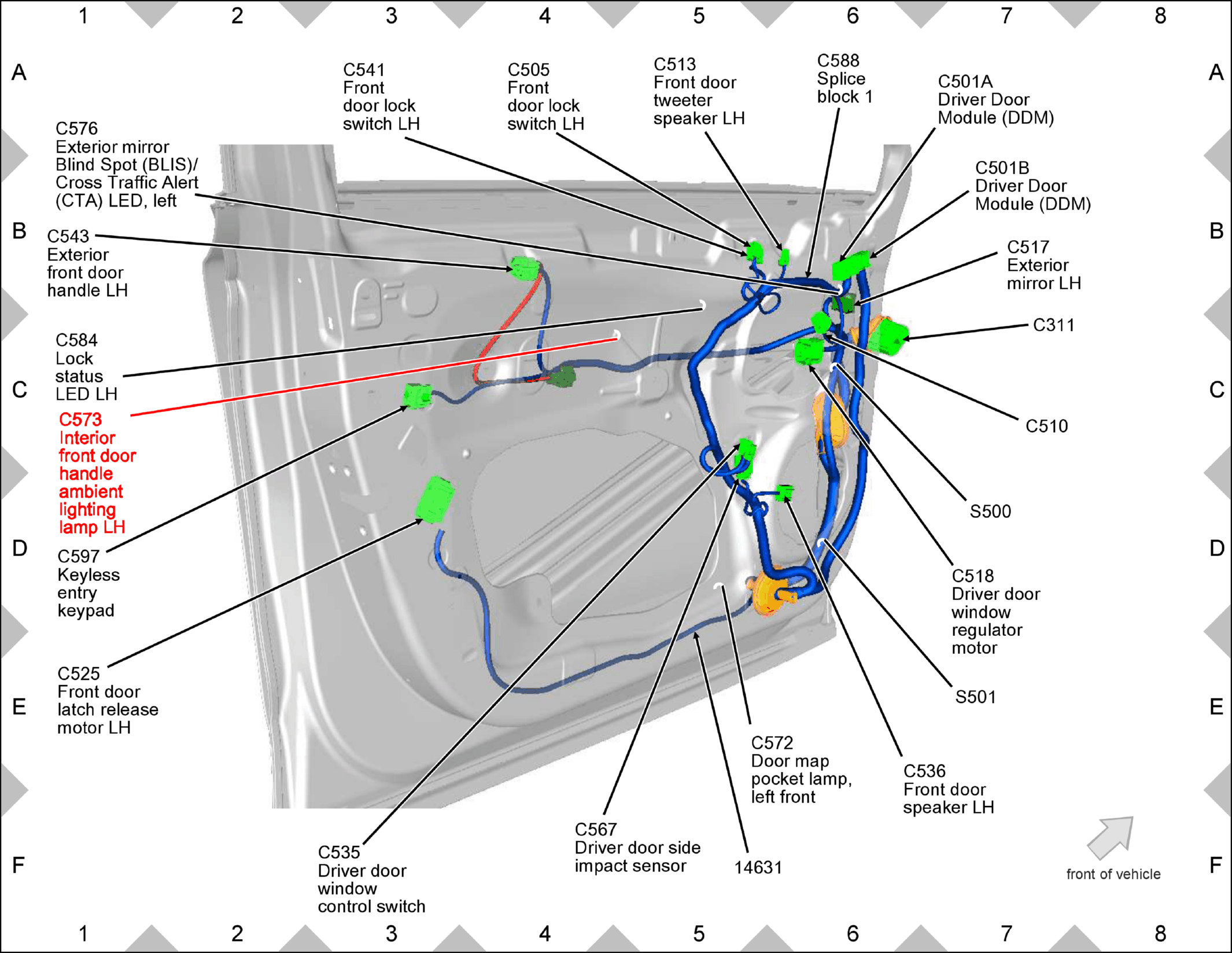

Fig 1: Interior Front Door Handle Ambient Lighting Lamp LH (Fusion) Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
