Intelligent Access (IA) Antenna, Liftgate (Fusion)

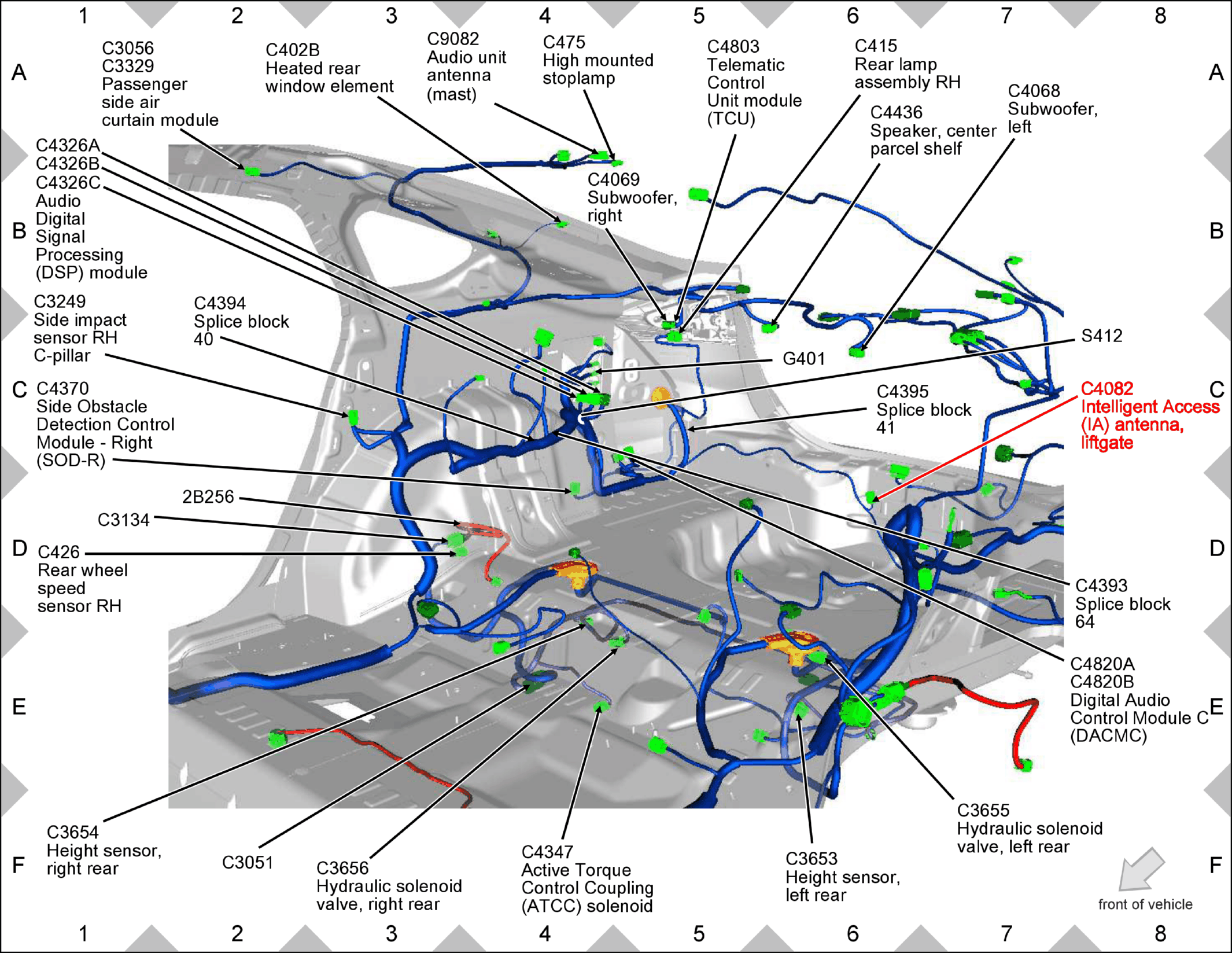

Fig 1: Intelligent Access (IA) antenna, liftgate (Fusion)

GFDW51733

Courtesy of FORD MOTOR COMPANY
