Instrument Panel Console Switch Assembly (Fusion)

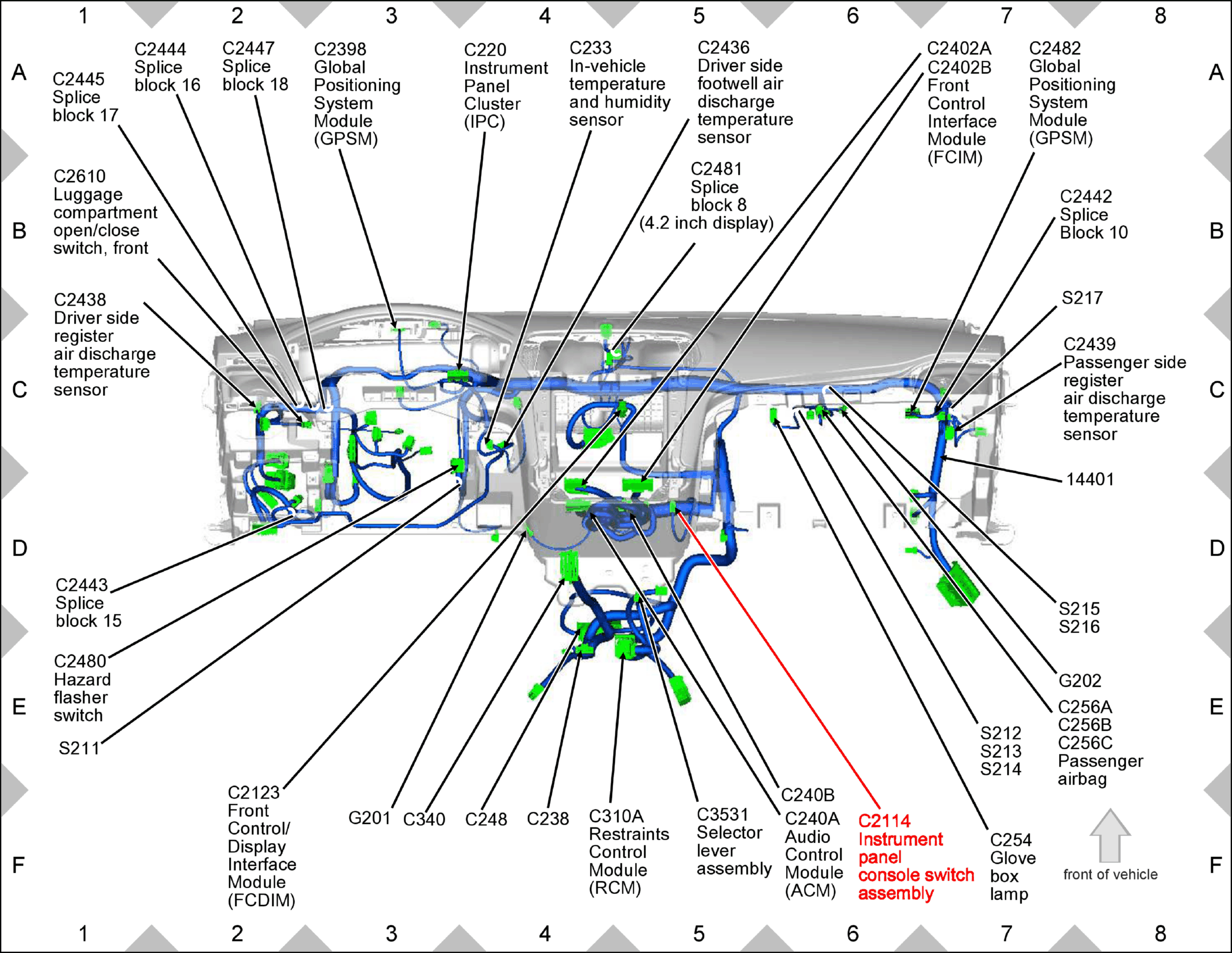

Fig 1: Instrument Panel Console Switch Assembly (Fusion) Component Location

GFDW51732

Courtesy of FORD MOTOR COMPANY
