Ignition Switch-Push Button Start (Fusion)

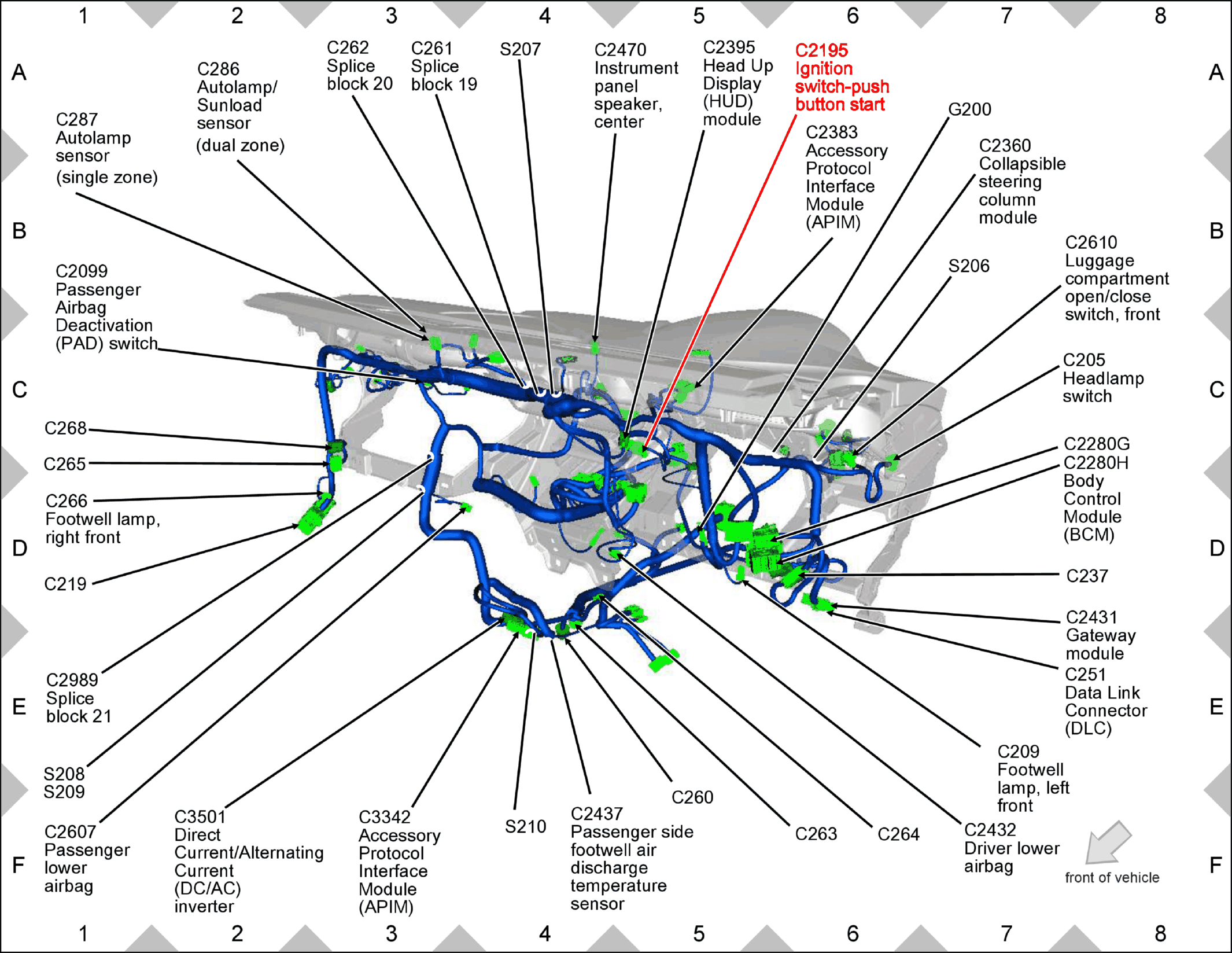

Fig 1: Ignition Switch-Push Button Start (Fusion) Component Location
GFDW51725Courtesy of FORD MOTOR COMPANY
