High Current Battery Junction Box (BJB)

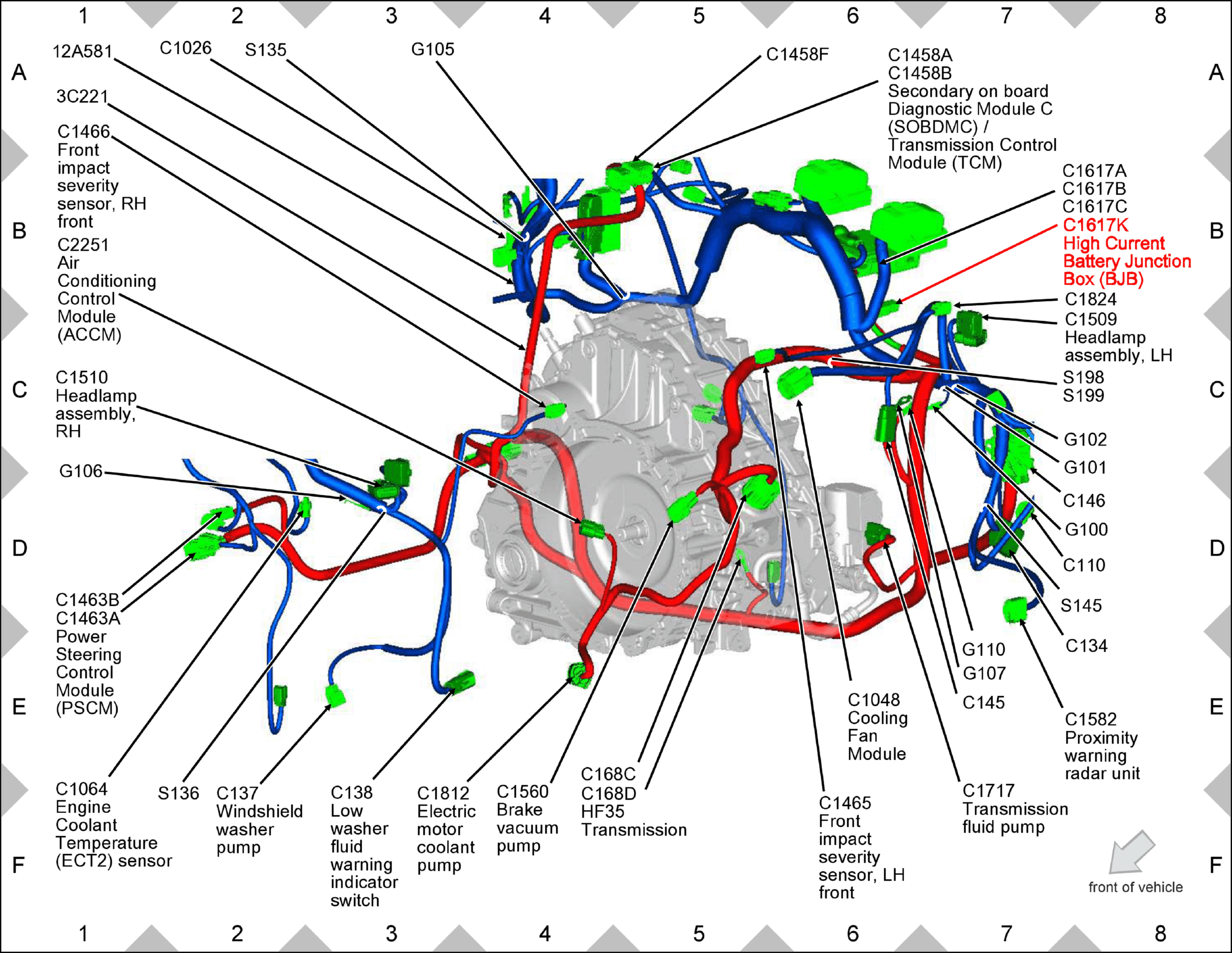

Fig 1: High Current Battery Junction Box (BJB) Component Location

GFDW51715

Courtesy of FORD MOTOR COMPANY
