Fuel Tank Pressure (FTP) Sensor (Fusion)

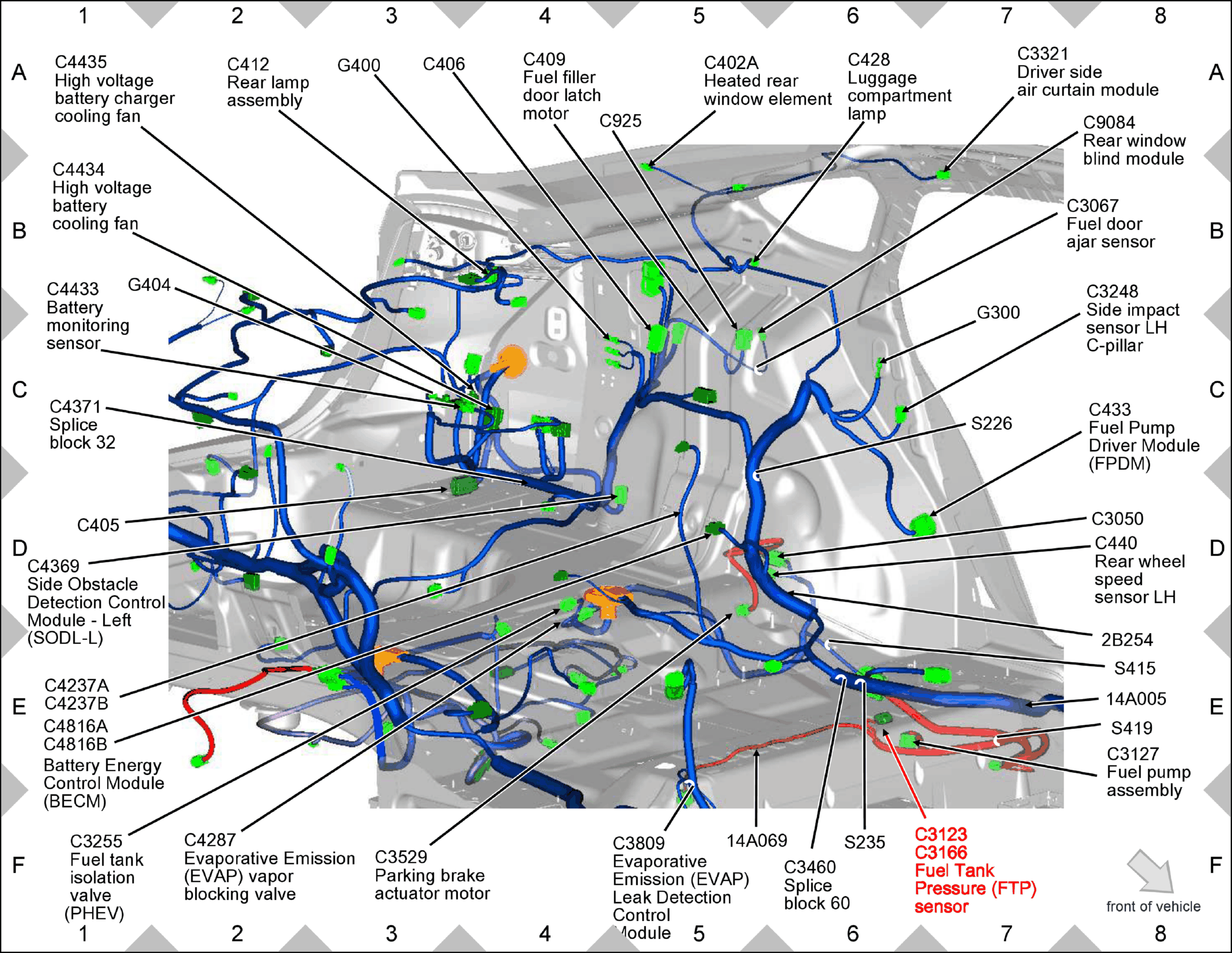

Fig 1: Fuel Tank Pressure (FTP) Sensor (Fusion) Component Location

GFDW51694

Courtesy of FORD MOTOR COMPANY
