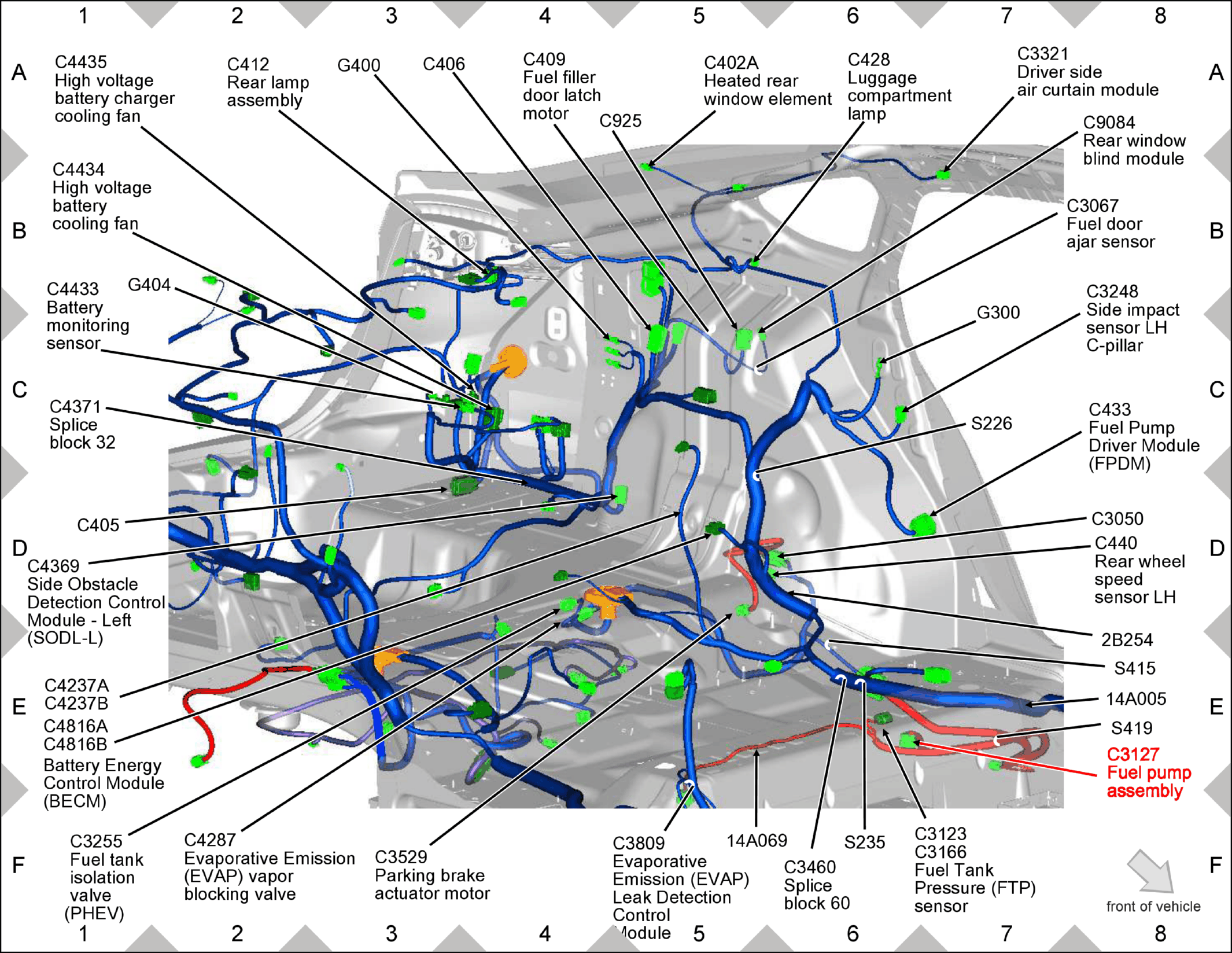

Home >> Ford >> 2016 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts (Hybrid/ENERGI) >> Component Location Charts >> Fuel Pump Assembly (Fusion)
