Front Wheel Speed Sensor LH

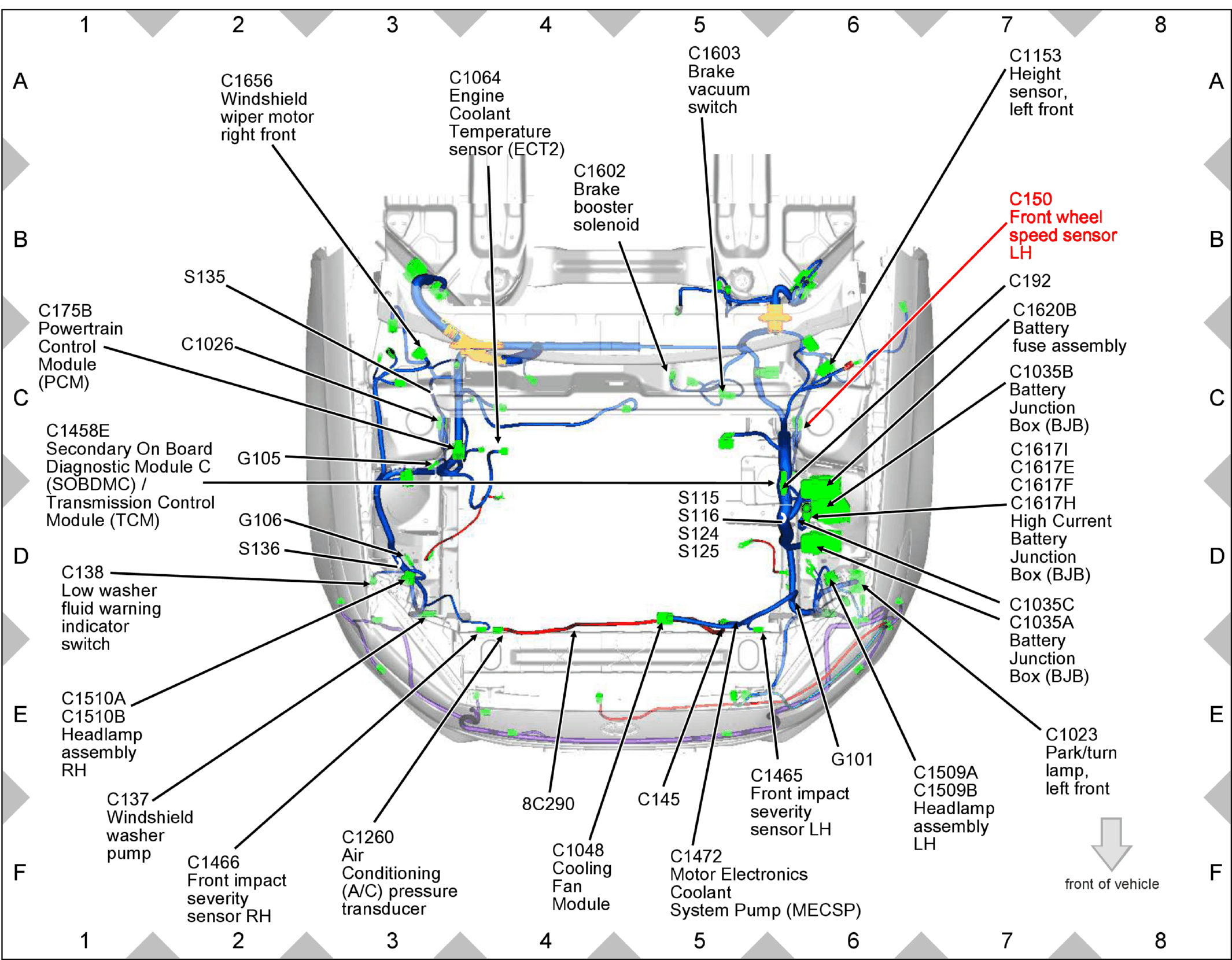

Fig 1: Front Wheel Speed Sensor LH Component Location

GFDW51683

Courtesy of FORD MOTOR COMPANY
