OEM Component Harness Location Charts (Hybrid/ENERGI)
>>
Component Location Charts
>>
Front Outer Parking Aid Sensor LH
Front Outer Parking Aid Sensor LH

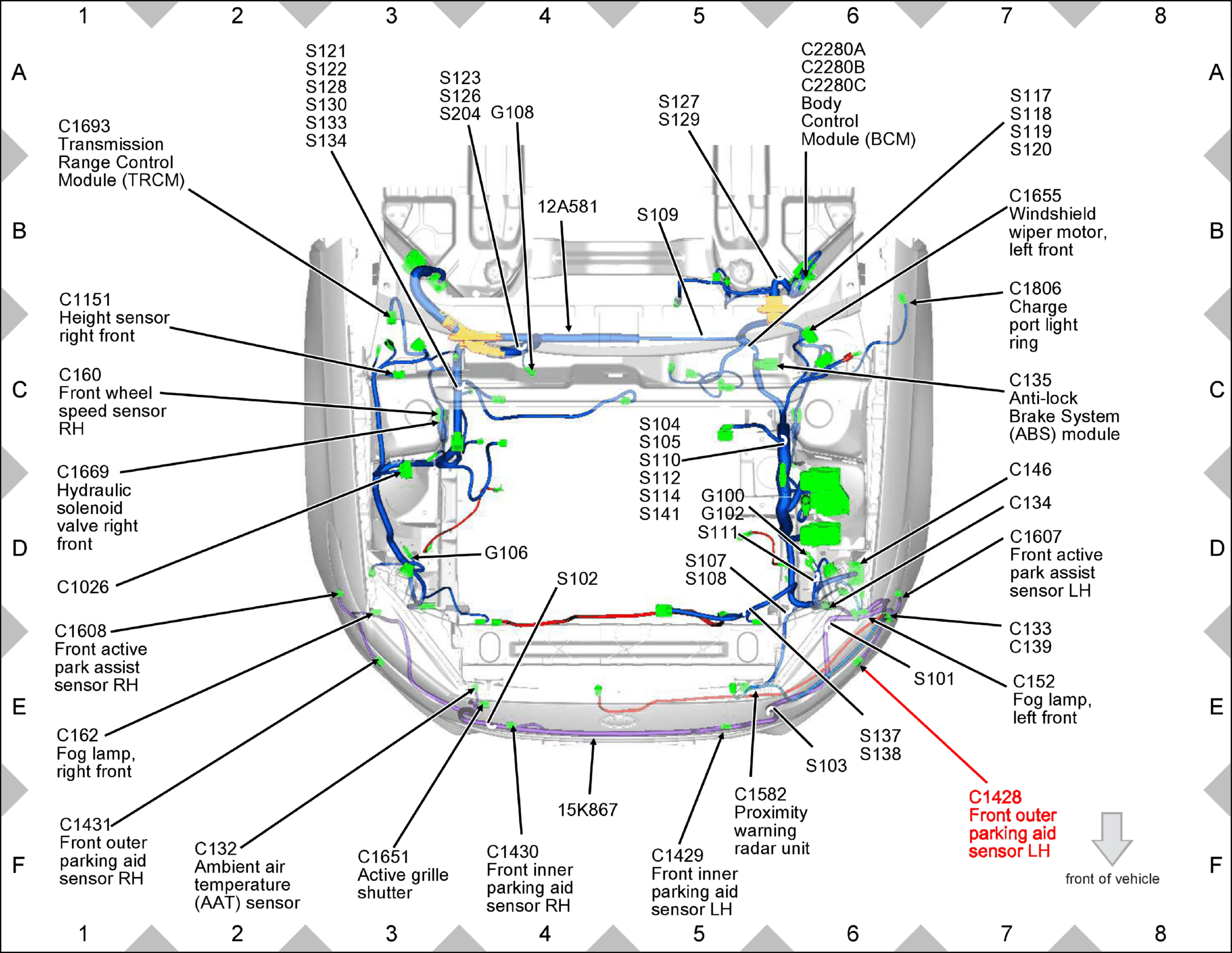

Fig 1: Front Outer Parking Aid Sensor LH Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
