Front Door Latch Release Motor LH (Fusion)

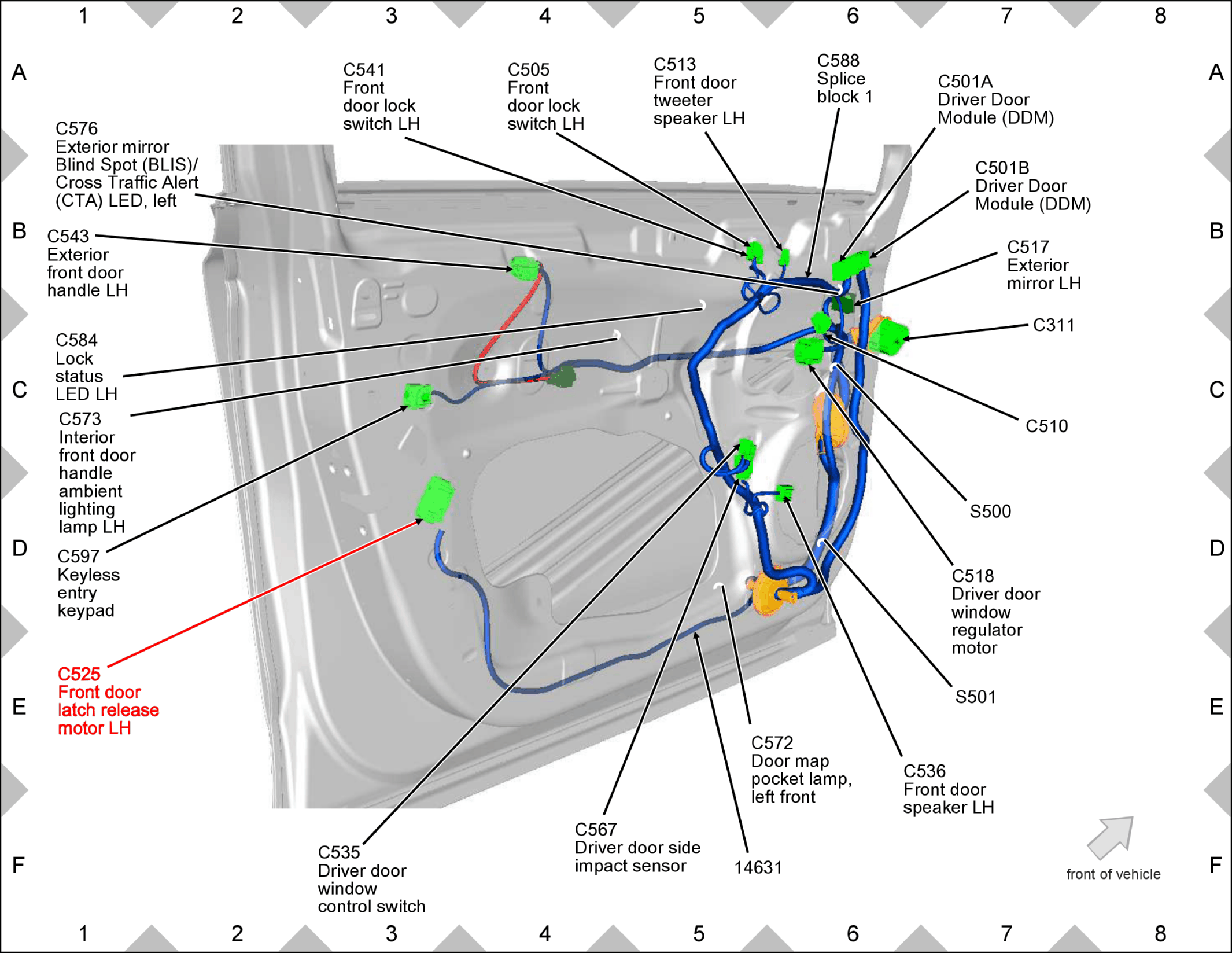

Fig 1: Front Door Latch Release Motor LH (Fusion) Component Location
GFDW51674Courtesy of FORD MOTOR COMPANY
