Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) LED, Left (Fusion)

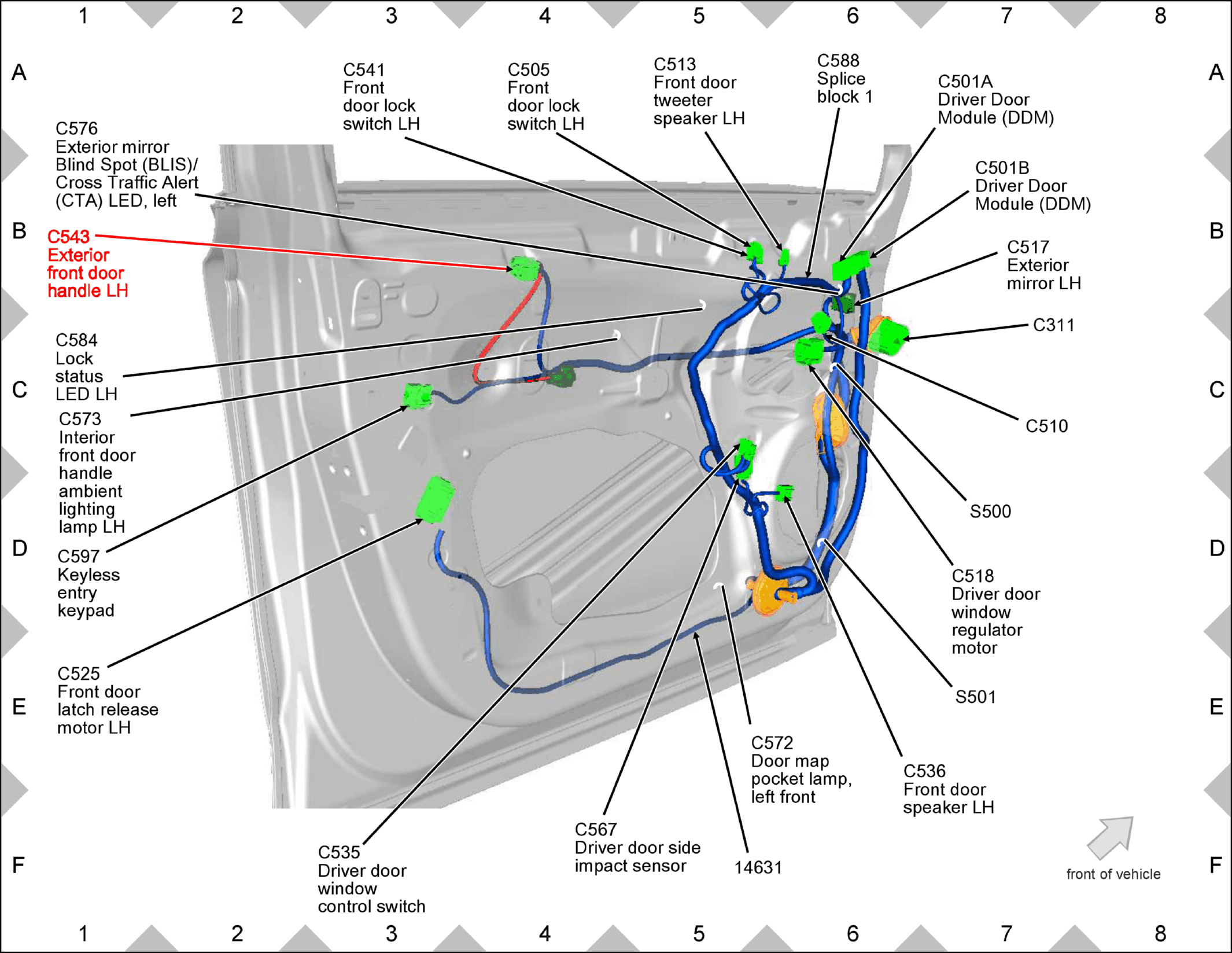

Fig 1: Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) LED, Left (Fusion) Component Location
GFDW51662Courtesy of FORD MOTOR COMPANY
