Home >> Ford >> 2016 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts (Hybrid/ENERGI) >> Component Location Charts >> Driver Safety Belt Retractor Pretensioner

Driver Safety Belt Retractor Pretensioner

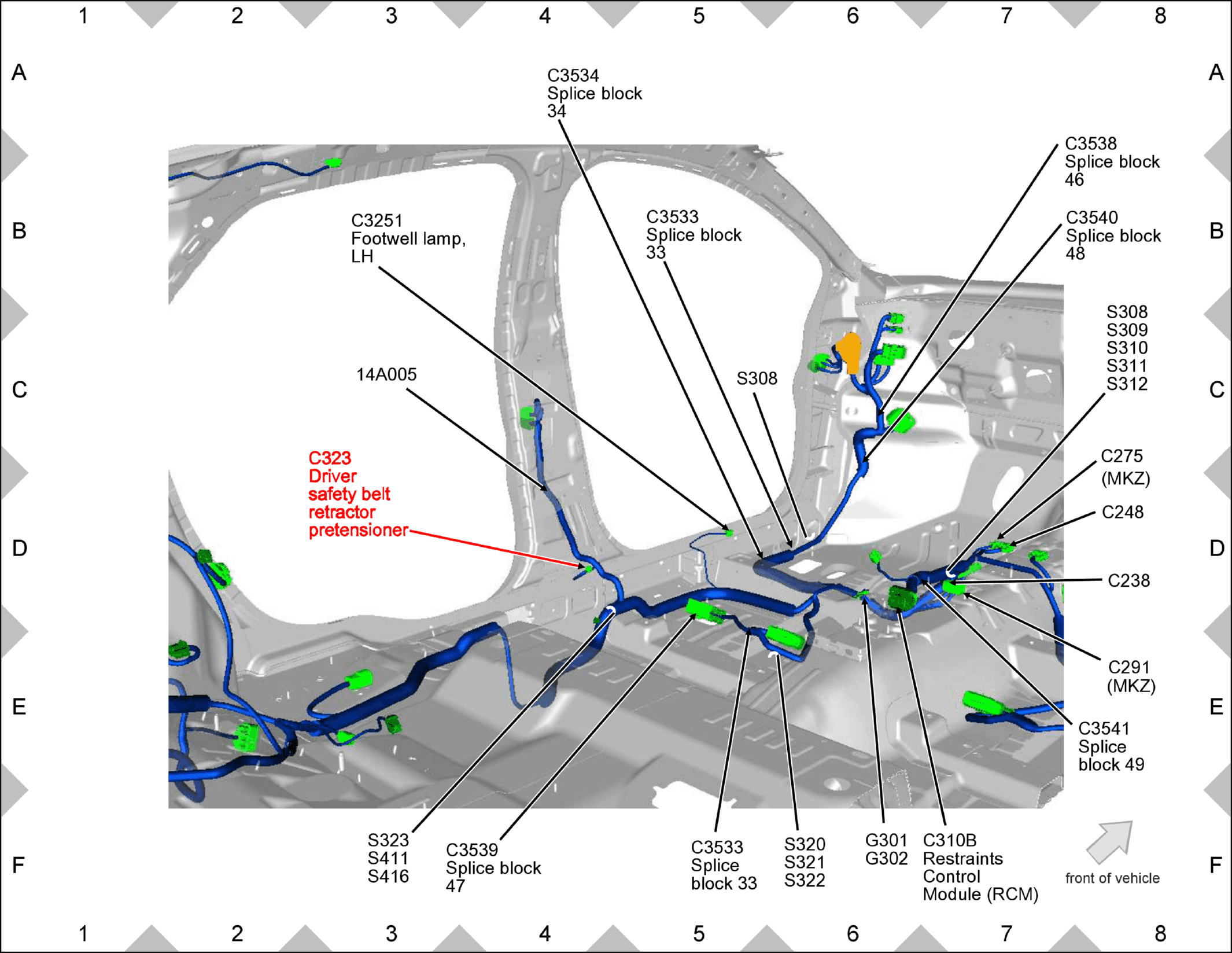

Fig 1: Driver Safety Belt Retractor Pretensioner Component Location

GFDW51644

Courtesy of FORD MOTOR COMPANY
