Direct Current/Alternating Current (DC/AC) Inverter (Fusion)

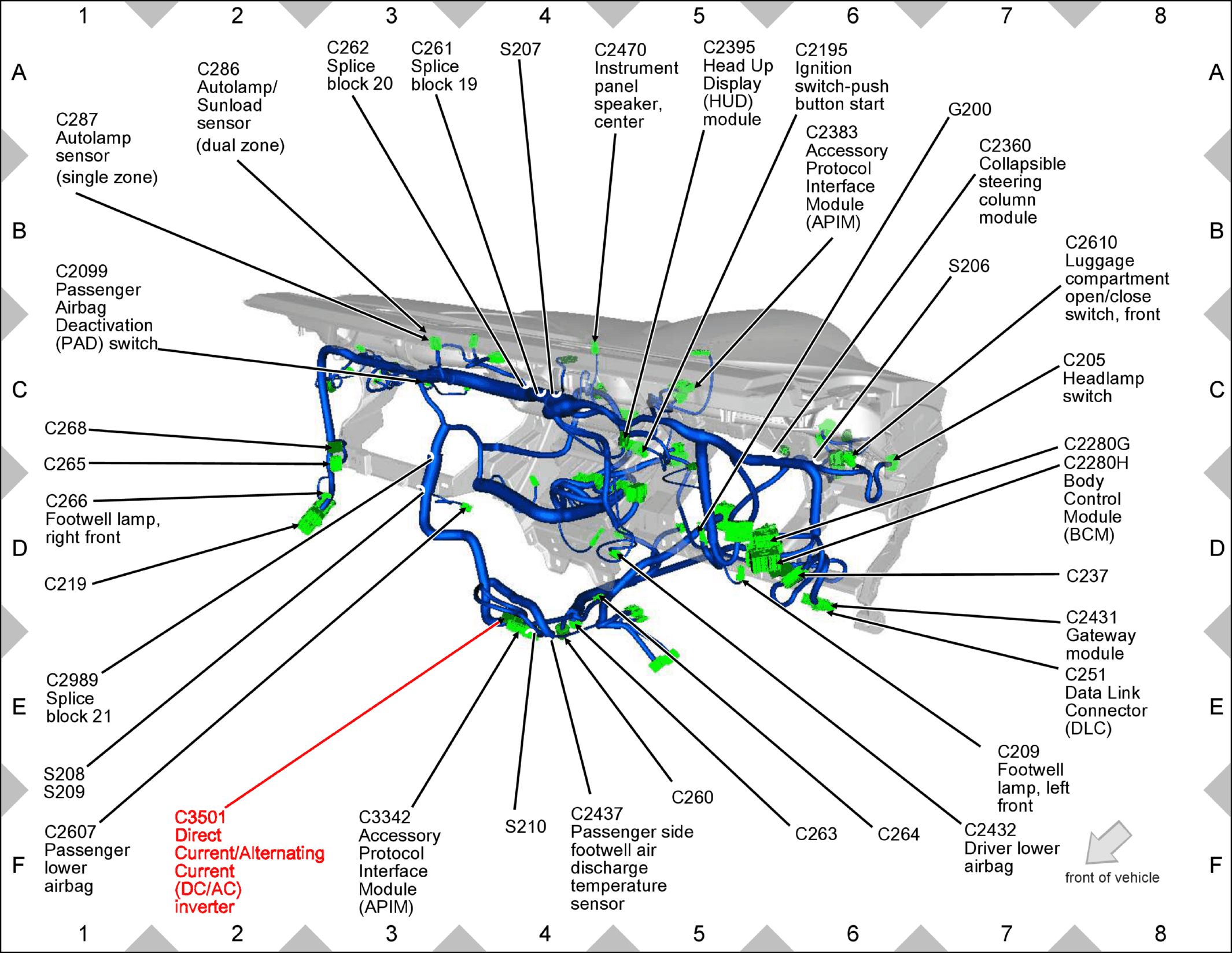

Fig 1: Direct Current/Alternating Current (DC/AC) Inverter (Fusion) Component Location

GFDW51633

Courtesy of FORD MOTOR COMPANY
